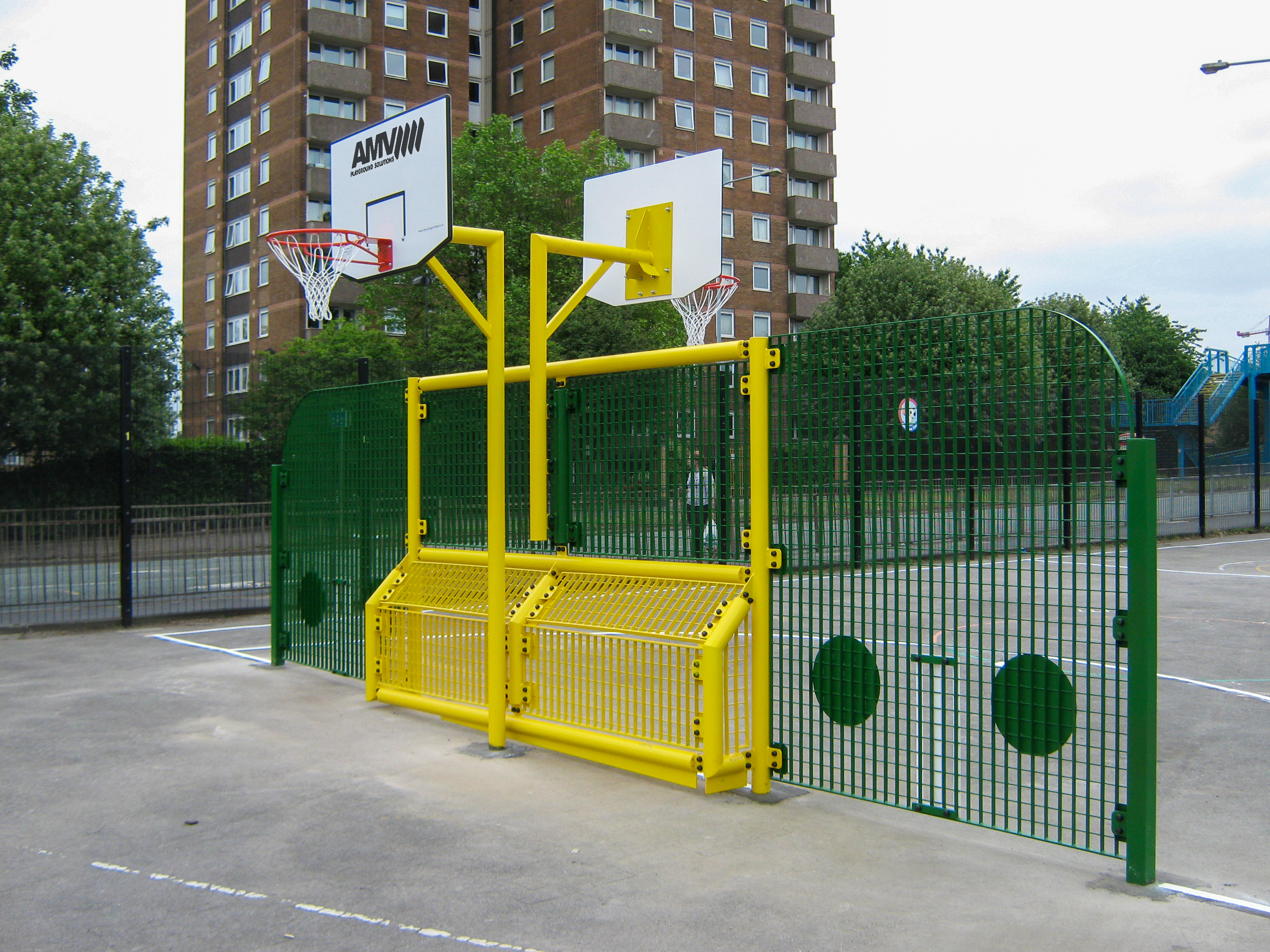

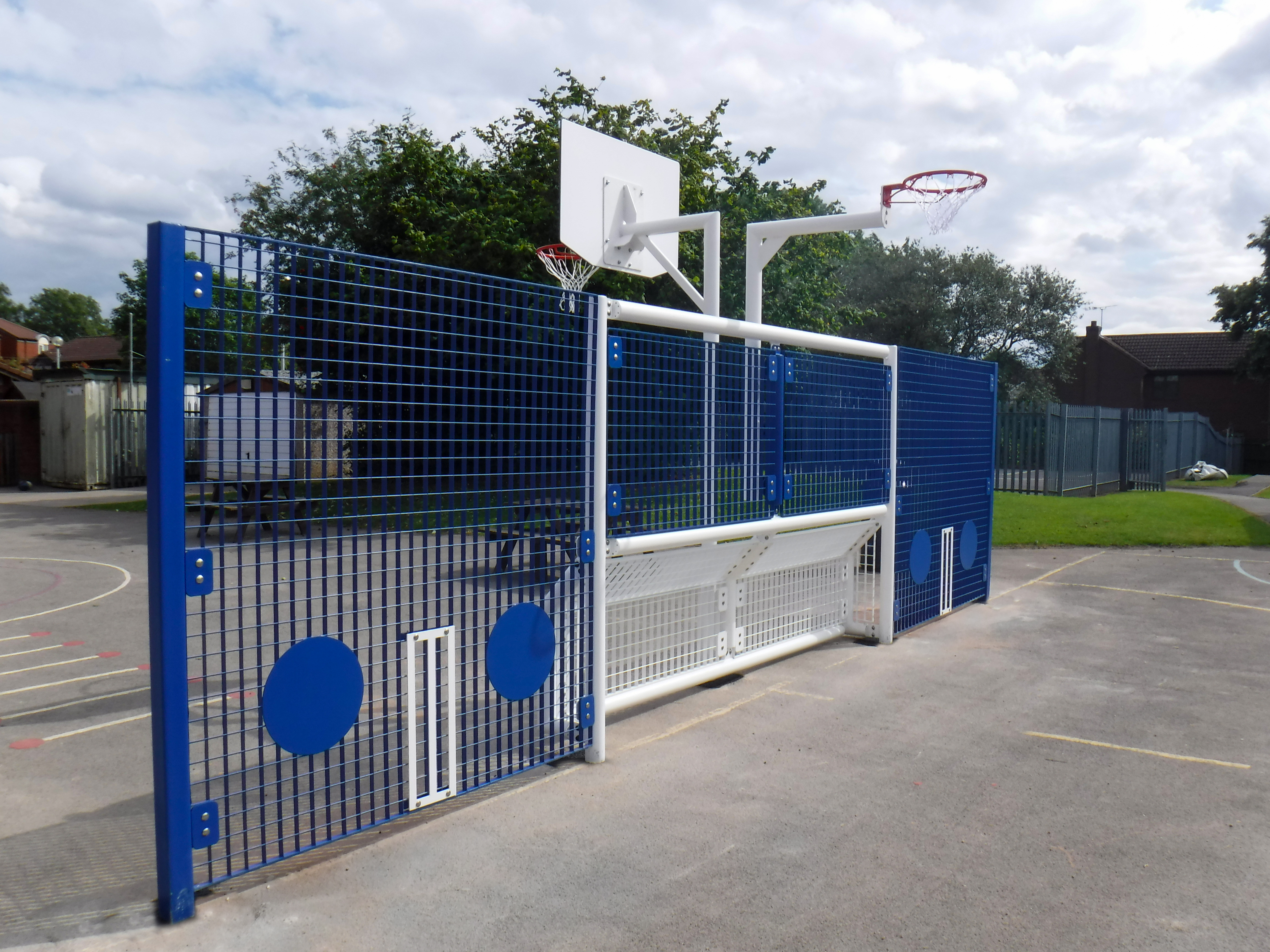

KS2 Junior Goal Unit 231 (Basketball & Netball)
KS2 Junior Goal Unit 231 (Basketball & Netball)
The KS2 Junior Goal Unit 231 is engineered for schools seeking a comprehensive, multi‑sport solution that supports a wide range of Key Stage 2 physical activities. Its large 7200mm width and 2000mm overall height create a spacious, engaging play environment that accommodates football, hockey and cricket while also offering specialised basketball and netball training zones. The unit incorporates a back‑to‑back basketball system, each hoop set at 2600mm, enabling simultaneous or individual shooting practice from both sides—ideal for PE rotations, skill stations and high‑capacity playgrounds. A 2740mm netball ring provides an age‑appropriate target for netball shooting drills, developing technique, accuracy and upper‑body coordination.
High 2000mm side panels with integrated targets and wickets further enrich the activity mix by supporting cricket practice, precision training and ball‑control exercises. Constructed from mild steel to BS EN 10210 standards and finished with a galvanised and polyester powder‑coated coating to BS 6497, the structure provides superior weather, impact and vandal resistance suitable for daily use in busy school environments. The child‑safe design reduces finger‑trap risks and is manufactured in accordance with BS EN 15312 and EN 1270 multi‑sport safety standards, ensuring suitability for both supervised lessons and unsupervised free‑access play. Schools may substitute the netball ring with an additional basketball backboard if preferred. Available in a wide range of RAL colours with optional cricket and target panel add‑ons, KS2 Junior Goal Unit 231 delivers maximum flexibility, long‑term value and professional‑grade performance for school and community sports facilities.
Galvanised
BSFG RAL 6001
BSFG RAL 7008
BSFG RAL 1013
BSFG RAL 7035
BSFG RAL 6027
BSFG RAL 2002
BSFG RAL 5015
BSFG RAL 5021
BSFG RAL 9005
BSFG RAL 3020
BSFG RAL 1023
BSFG RAL 2004
BSFG RAL 9006
BSFG RAL 1027
BSFG RAL 8017
BSFG RAL 7001
BSFG RAL 6018
BSFG RAL 6019
BSFG RAL 7039
BSFG RAL 8007
BSFG RAL 5024
BSFG RAL 9016
BSFG RAL 3005
BSFG RAL 4009
BSFG RAL 1028
BSFG RAL 5013
BSFG RAL 4005
BSFG RAL 7012
BSFG RAL 7016
| Age Suitability: | 9-12 |
|---|---|
| BSFG RAL Colours Palette: | Galvanised, BSFG RAL 1013, BSFG RAL 1023, BSFG RAL 1027, BSFG RAL 1028, BSFG RAL 2002, BSFG RAL 2004, BSFG RAL 3005, BSFG RAL 3020, BSFG RAL 4005, BSFG RAL 4009, BSFG RAL 5013, BSFG RAL 5015, BSFG RAL 5021, BSFG RAL 5024, BSFG RAL 6001, BSFG RAL 6018, BSFG RAL 6019, BSFG RAL 6027, BSFG RAL 7001, BSFG RAL 7008, BSFG RAL 7012, BSFG RAL 7016, BSFG RAL 7035, BSFG RAL 7039, BSFG RAL 8007, BSFG RAL 8017, BSFG RAL 9005, BSFG RAL 9006, BSFG RAL 9016 |
| Basketball or Netball: | Both |
| Country of Origin: | United Kingdom |
| Depth: | 400 mm |
| Finishing / Treatment: | Galvanised, Powder Coated |
| Goal Depth: | 400 mm |
| Goal Height: | 1000 mm |
| Goal Length: | 3200 mm |
| Goal Mouth Style: | Recess Goal |
| Height: | 2000 mm |
| Key Stage: | Key Stage 2 |
| Length: | 7200 mm |
| Material: | Steel |
| Mounting Options: | Root Fixed |
| Side Panel Edge: | Straight |
| Side Panel Height: | 2000 mm |
| Side Panel Length: | 2000 mm |
| Side Panels: | Yes |
| Upper Rebound Panel: | Yes |
| Upper Rebound Panel Height: | 1000 mm |
| Upper Rebound Panel Length: | 3200 mm |
Login
£6,651.00
Excl. VAT£7,981.20 Incl. VAT
Installation / fixing method
This Product can be customised with a range of optional fixtures. If you have any further bespoke requirements get in touch, our sales team will be happy to help.
FAQ
The unit measures 2000mm in overall height, 7200mm in width and 400mm in goal depth.
It supports football, basketball, netball, hockey and cricket activities, making it ideal for varied PE and playground use.
The basketball rings are set at 2600mm and the netball ring at 2740mm, suitable for KS2 learners.
The unit includes 2000mm high side panels with targets and wickets for precision, aiming and cricket‑style drills.
Yes, the mild steel structure is fully galvanised and powder coated, offering exceptional durability, weather resistance and vandal protection.
