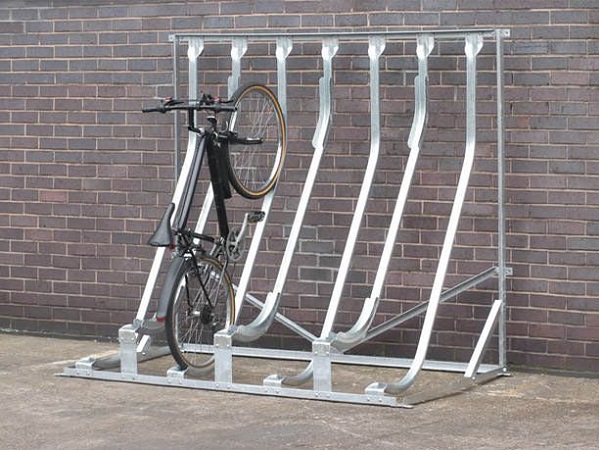

Type 9 Secure Semi-Vertical Bike Rack
Type 9 Secure Semi-Vertical Bike Rack
The Type 9 Secure Semi‑Vertical Bike Rack optimises space efficiency by storing cycles in a semi‑vertical position, making it an ideal choice for locations where density, clear access routes and orderly cycle parking are essential. Its custom‑designed tapered steel trough fully locates both front and rear wheels, providing a stable, protective cradle suitable for road bikes, hybrids and mountain bikes up to 2 inches in tyre width. The secure locking hoops allow riders to lock the bike frame directly to the rack, significantly enhancing security and reducing the risk of theft. Close 305mm spacing ensures maximum capacity without compromising usability, while optional wider spacing (350mm or 400mm) provides flexibility for schemes accommodating larger bicycles or greater manoeuvring room.
Built to withstand intensive daily use, the Type 9 rack is manufactured from fully hot‑dip galvanised steel compliant with ISO 1461 standards, ensuring long‑term corrosion resistance in exposed outdoor environments. Its modular nature allows the system to scale to any number of bike spaces, starting from a minimum of three bays, with the ability to extend endlessly to suit project requirements. By maintaining a high degree of durability and minimal maintenance requirements, the design offers genuine lifecycle value to clients balancing capital budgets with future facility upkeep. Its proven real‑world performance across business campuses, school grounds and public transport interchanges highlights its reliability and user‑friendly function—qualities that help drive positive behavioural shifts towards active commuting.
| Condition Upon Delivery: | Disassembled |
|---|---|
| Country of Origin: | United Kingdom |
| Depth: | 1143 mm |
| Finishing / Treatment: | Galvanised |
| Height: | 1829 mm |
| Length: | 1562 mm |
| Material: | Steel |
| Minimum Space Between Racks: | 305 mm |
| Mounting Options: | Surface Mounted |
| Number of Parking Spaces: | 1, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Single or Double Sided Configuration: | Single Sided |
| Type: | Semi-Vertical Rack |
| Tyre Width: | 50 mm |
| Wheel Setting: | High, Low |
| Wheel Spacing (mm): | 305 mm |
Login
Please select your desired product configuration below.
£125.00
Excl. VAT£150.00 Incl. VAT
Installation / fixing method
This Product can be customised with a range of optional fixtures. If you have any further bespoke requirements get in touch, our sales team will be happy to help.
FAQ
It supports all standard cycle types, from road bikes to mountain bikes, with tyres up to 2 inches wide, thanks to its fully locating tapered steel wheel trough.
Yes, the close 305mm centre‑to‑centre spacing maximises capacity, with optional wider spacing available for projects requiring additional clearance.
Yes, integral steel locking hoops are built into each space, allowing users to secure the bike frame and wheels with a D‑lock or chain.
Absolutely—its modular design means it can be configured for any number of cycle spaces, starting from three and extending indefinitely.
Yes, all steelwork is fully hot‑dip galvanised to ISO 1461, delivering long‑term corrosion protection in outdoor or exposed environments.
