Sunny Tree Grille

Product code: 309.1401

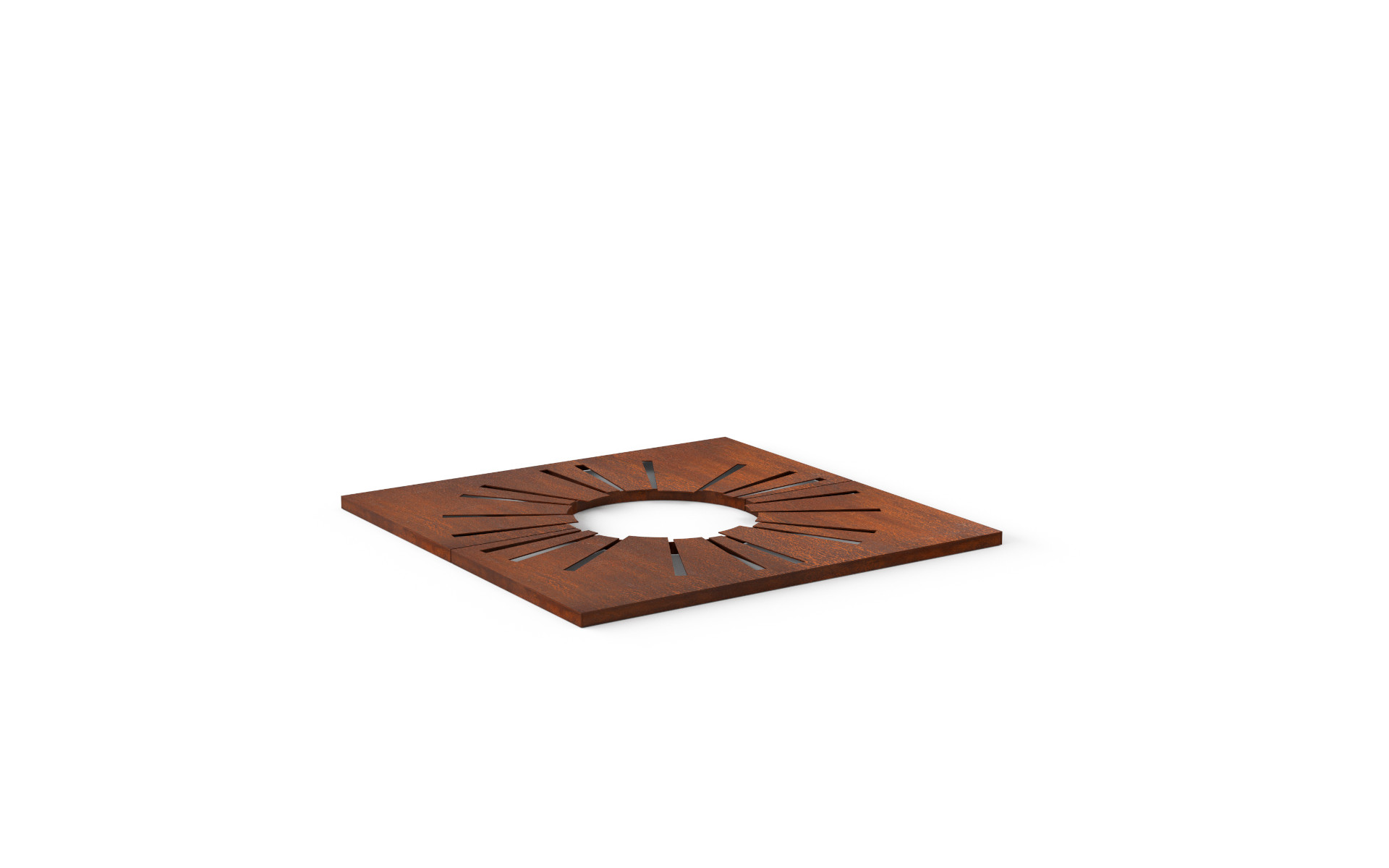

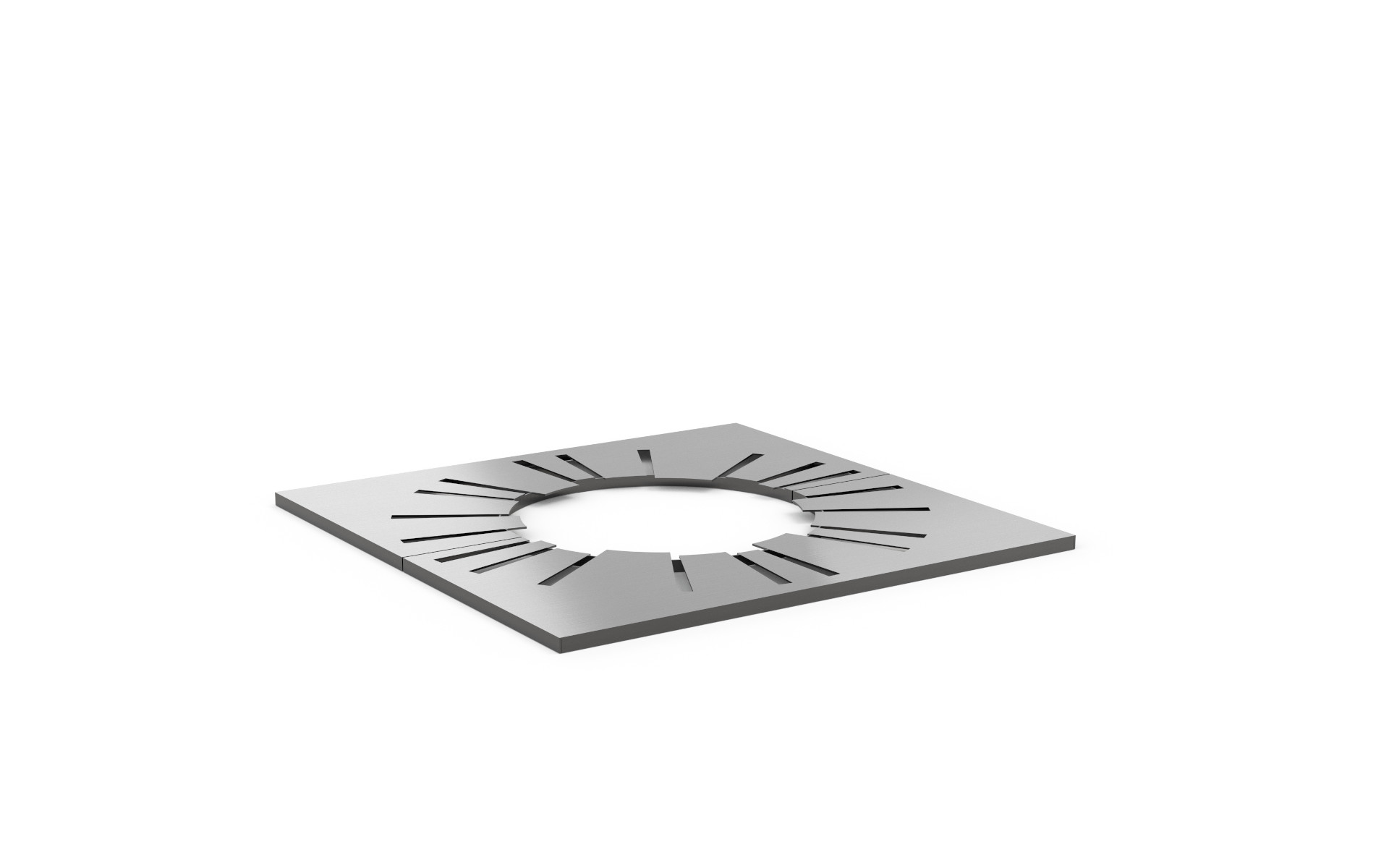

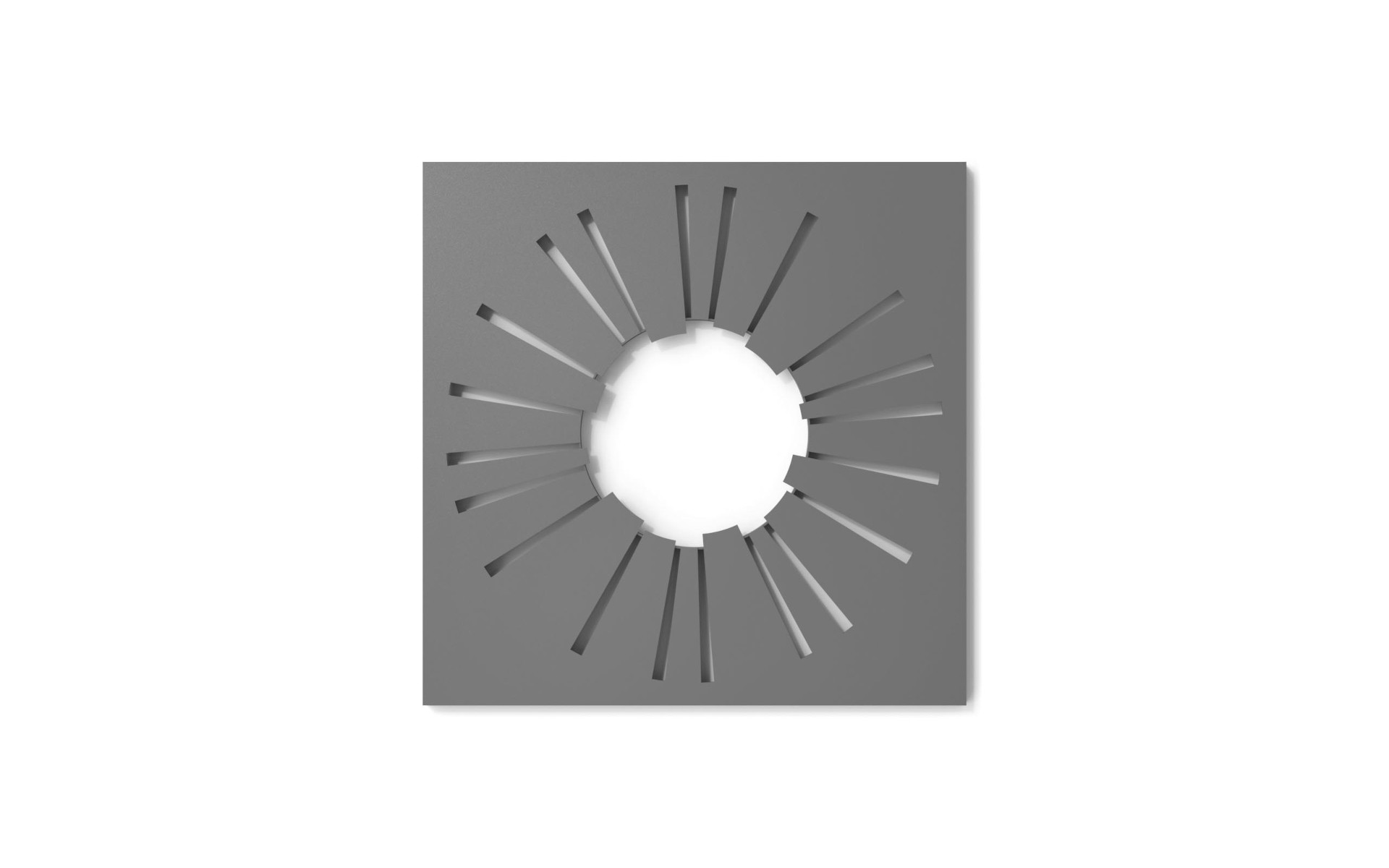

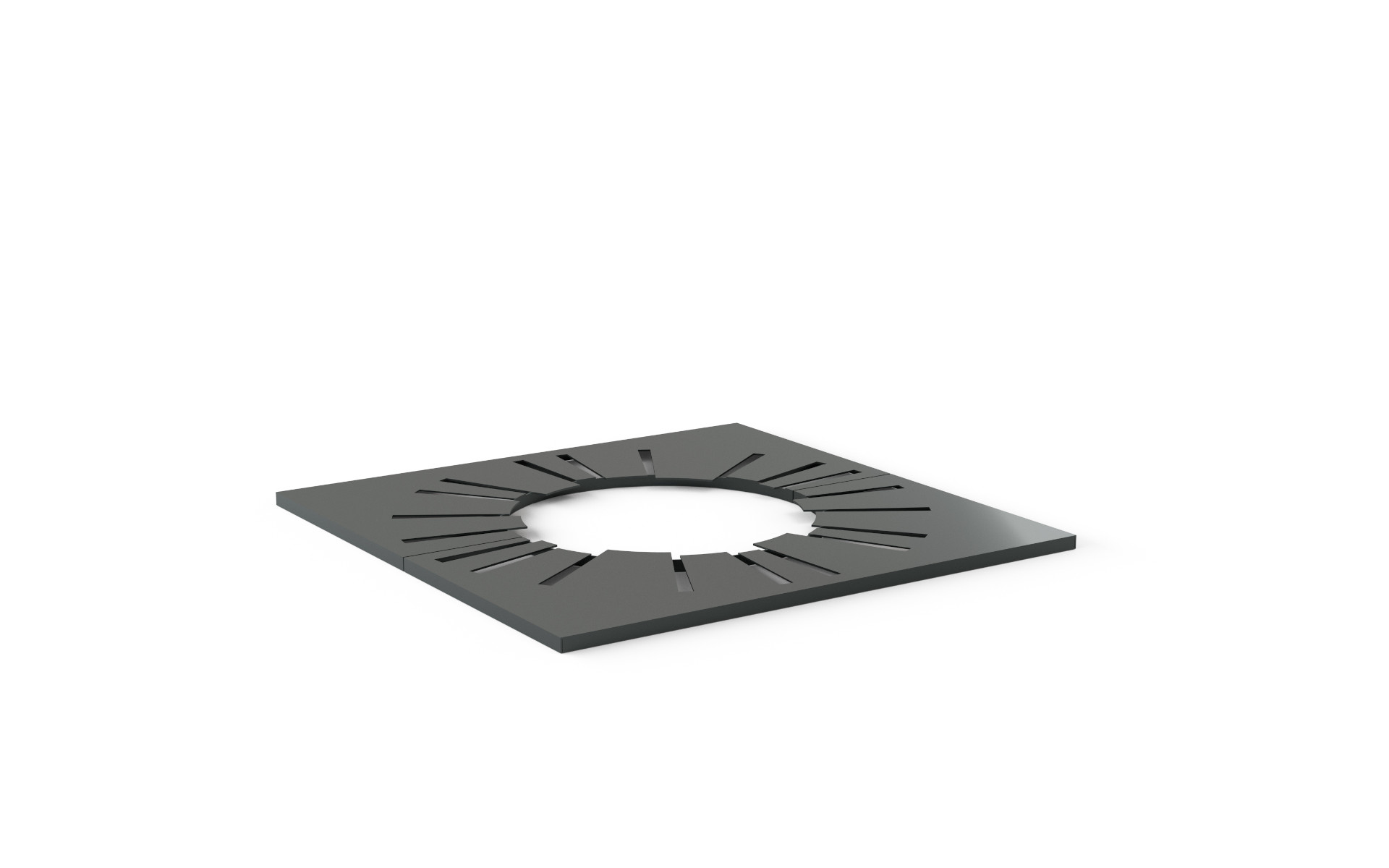

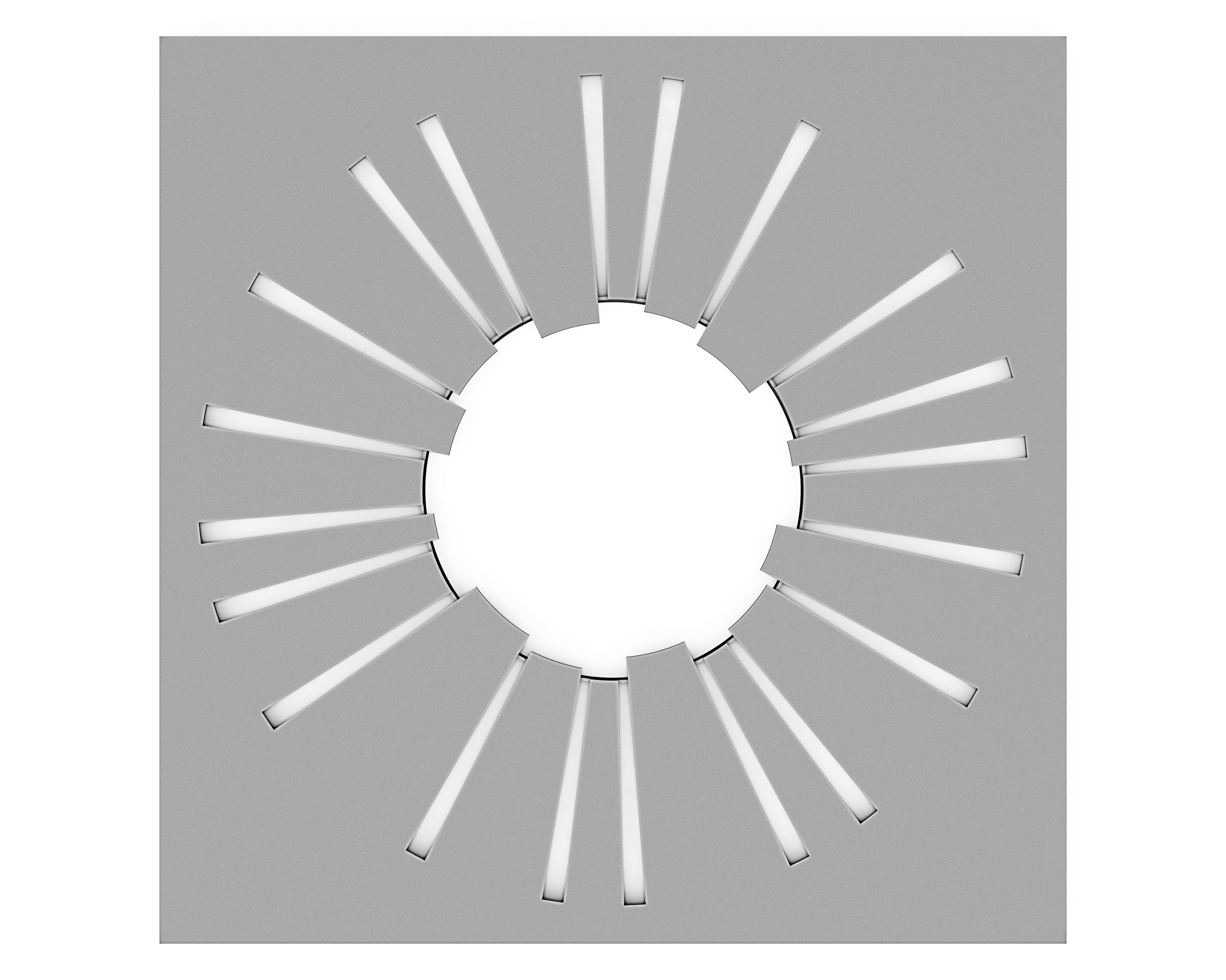

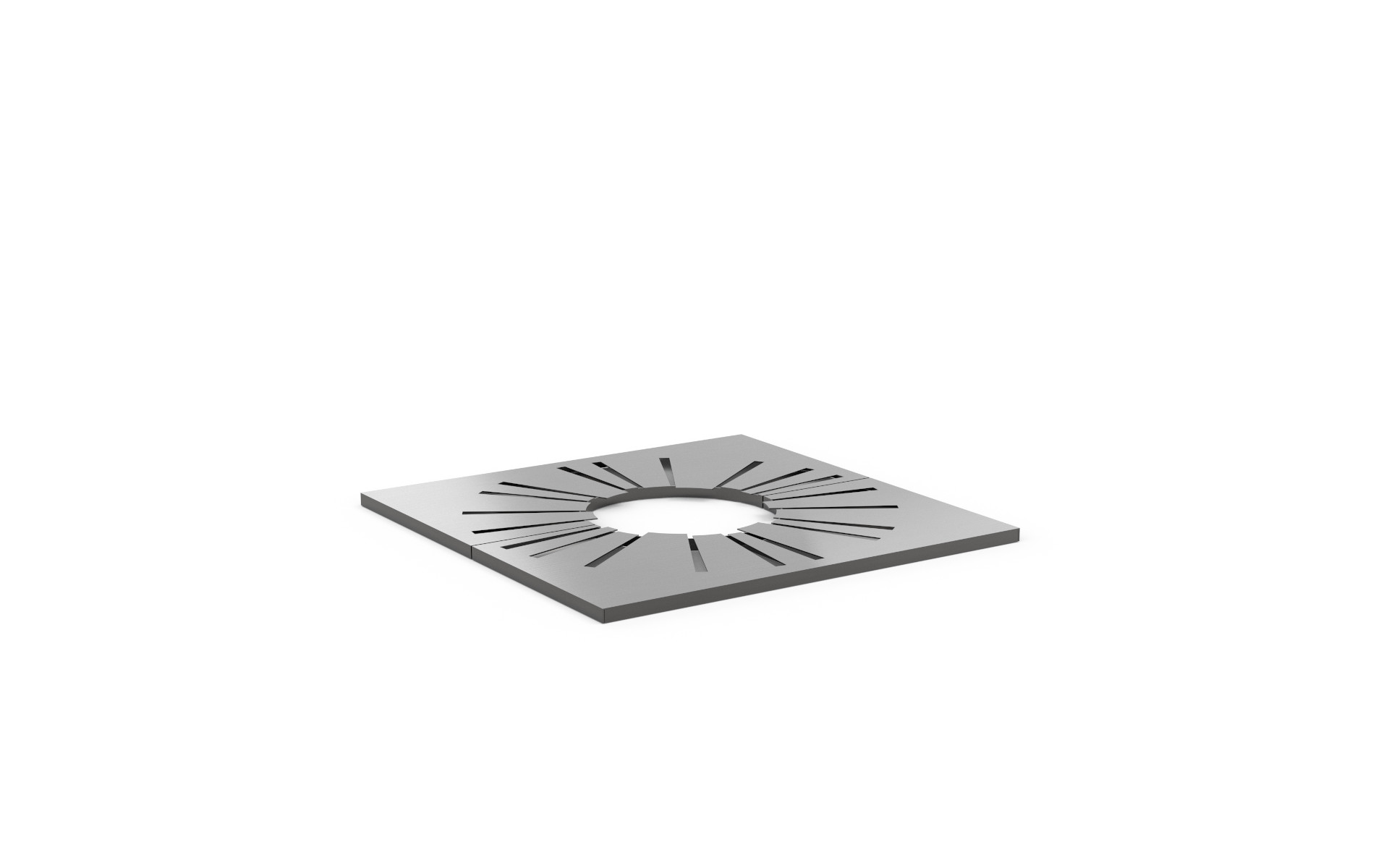

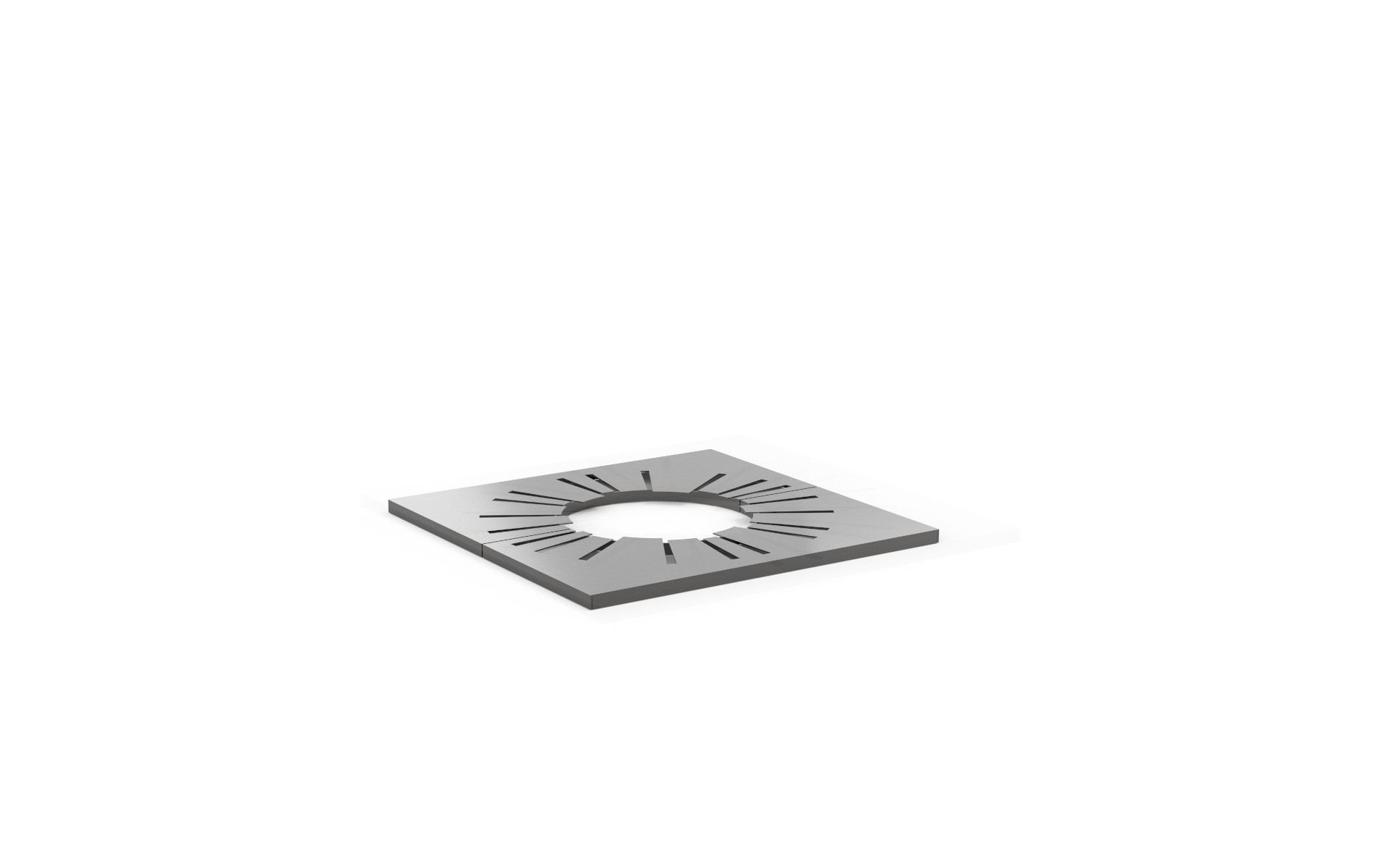

Bring specification-grade style and protection to tree pits with the BSFG Sunny Tree Grille — a square, laser‑cut steel grille featuring a distinctive sun‑ray pattern and a central circular aperture. Supplied in two interlocking halves (with perimeter and internal reinforcements) for secure assembly on site, Sunny is offered in three sizes with matching steel sub‑frame options for stable, long‑term performance. Available in hot‑dip galvanised, powder‑coated, stainless steel or Corten finishes to harmonise with surrounding hard landscaping and wayfinding. Designed for streetscapes, plazas and transport hubs where durability, accessibility and design cohesion matter most.

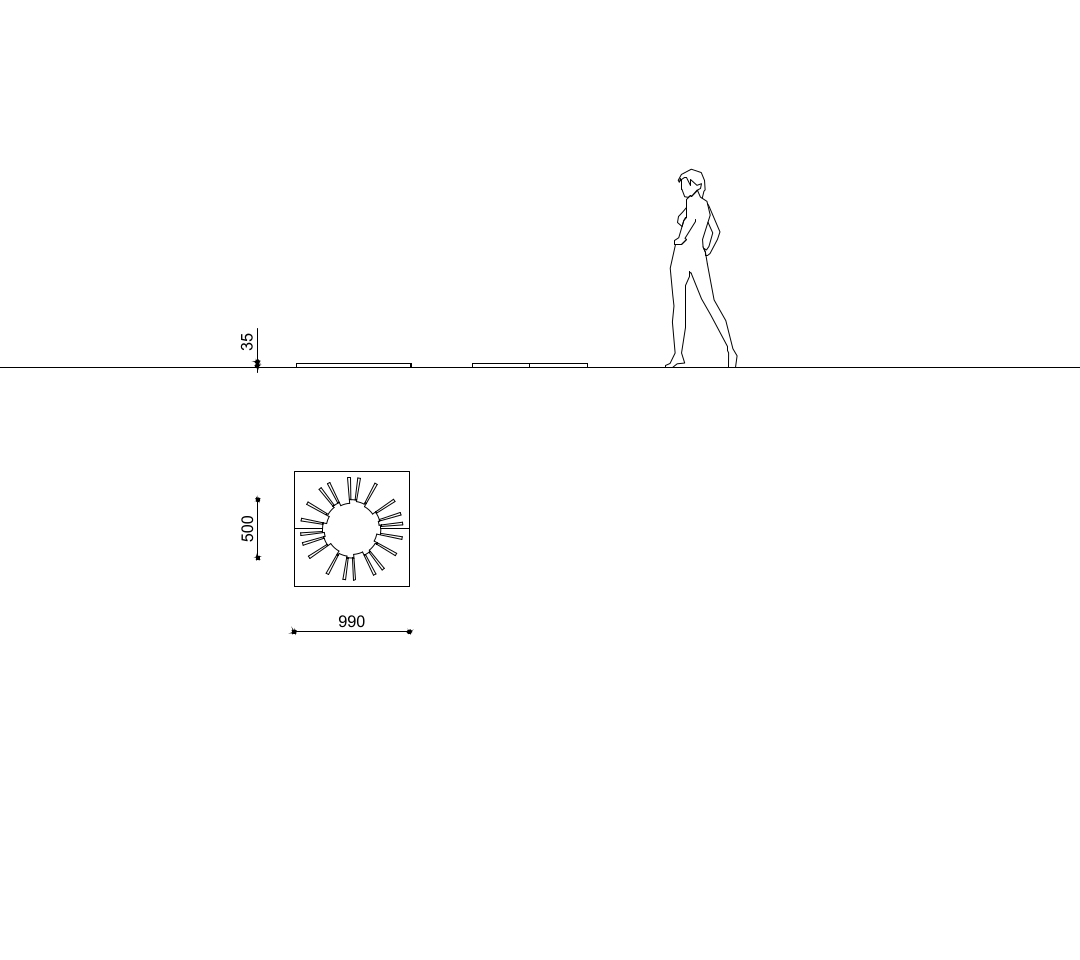

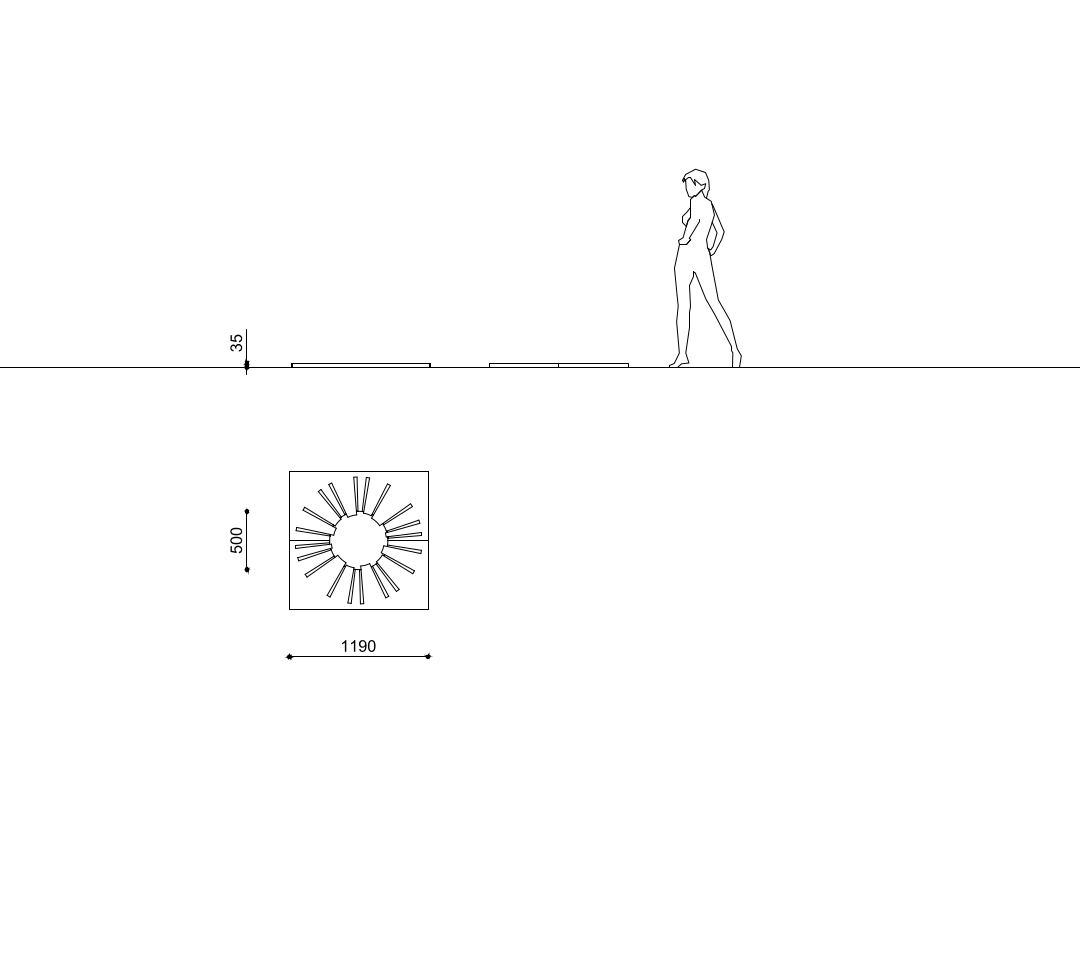

The BSFG Sunny Tree Grille delivers a bold, contemporary aesthetic and proven durability for high‑footfall public realm environments. Manufactured from laser‑cut steel sheet and reinforced internally and around the perimeter, the grille is supplied in two halves that screw together quickly around the trunk opening, ensuring accurate alignment and a stable, flush finish with surrounding paving. Offered in three square formats (nominal plan sizes typically 990×990 mm, 1190×1190 mm and 1440×1440 mm with 35 mm depth) and compatible hole diameters (Ø500 mm / Ø800 mm), Sunny can be paired with a dedicated steel sub‑frame for below‑ground or freestanding installation — delivering reliable perimeter support and long‑term load distribution. Finish options include powder‑coated steel in RAL colours, weathering Corten steel, hot‑dip galvanised steel, and stainless steel, enabling designers to coordinate with bollards, benches, litter bins and cycle infrastructure across the scheme. Aligning with BSFG’s mission to be the UK’s number one specified brand, Sunny unites specification‑ready engineering with a signature sun‑ray pattern that elevates the visual identity of urban green infrastructure.

RAL 5021

RAL 1028

RAL 3005

RAL 1027

RAL 2002

RAL 1012

RAL 9005

RAL 6019

RAL 1021

RAL 8017

RAL 7001

RAL 7012

RAL 6027

RAL 4009

RAL 5013

RAL 7039

RAL 3000

RAL 4005

RAL 6018

RAL 7008

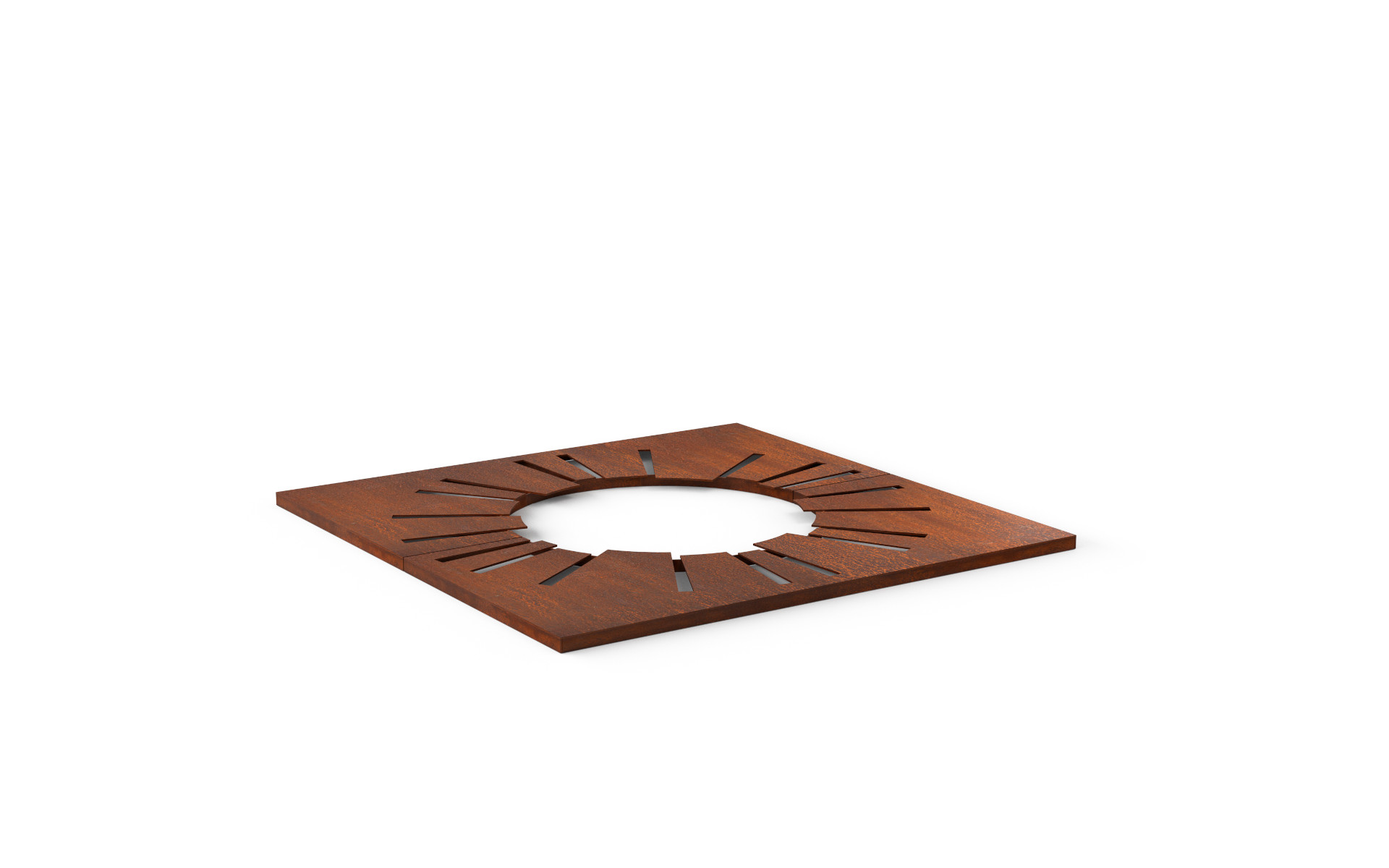

Corten Colour Matte Finish

RAL 9007

RAL 5010

RAL 3012

RAL 9006

RAL 7035

RAL 1013

RAL 6020

RAL 5015

RAL 5024

RAL 7016

RAL 9010

RAL 2004

Country of Origin:	Italy
Depth:	1190 mm
Designer:	Staubach + Kuckertz Architekten und Designer
Finishing / Treatment:	Galvanised, Powder Coated
Height:	35 mm
Length:	1190 mm
Material:	Steel
Metalco RAL Colours:	Corten Colour Matte Finish, RAL 1012, RAL 1013, RAL 1021, RAL 1027, RAL 1028, RAL 2002, RAL 2004, RAL 3000, RAL 3005, RAL 3012, RAL 4005, RAL 4009, RAL 5010, RAL 5013, RAL 5015, RAL 5021, RAL 5024, RAL 6018, RAL 6019, RAL 6020, RAL 6027, RAL 7001, RAL 7008, RAL 7012, RAL 7016, RAL 7035, RAL 7039, RAL 8017, RAL 9005, RAL 9006, RAL 9007, RAL 9010
Mounting Options:	Free Standing
NBS Source Listed:	Yes
Planter Shape:	Square
Variant:	Installation Frame, Tree Grille

Copy tender

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

E-mail address

Password

No reviews found. Share your insights with others.

Materials

(Based on selected configuration below)

Steel

Dimensions

(Based on selected configuration below)

L: 1190mm

D: 1190mm

H: 35mm

Please select your desired product configuration below.

Variant *

Product code: 309.1401.006.AK

POA

Price on application

Delivery time (weeks)

For accurate delivery costs, please contact us

Choose a colour *

Quantity

Download Data Sheet

Request info

Installation / fixing method

This Product can be customised with a range of optional fixtures. If you have any further bespoke requirements get in touch, our sales team will be happy to help.

Free Standing

Get in touch

Designed By:

Staubach + Kuckertz Architekten und Designer

Staubach & Kuckertz, German design duo, craft urban furniture and architectural elements that merge precision with poetic form. Their work transforms public spaces into harmonious environments where functionality meets timeless aesthetic vision.

FAQ

Three square formats are available, with typical dimensions around 990×990 mm, 1190×1190 mm and 1440×1440 mm, paired to central apertures commonly Ø500 mm or Ø800 mm depending on model.

The grille is supplied in two reinforced halves that screw together around the trunk aperture; a matching steel sub‑frame is available for below‑ground or freestanding fixing to deliver full‑perimeter support and stable seating in the paving build‑up.

Options include powder‑coated steel (RAL colours), Corten steel, stainless steel and galvanised steel, all engineered for long‑term durability in the public realm.

Yes. A dedicated steel sub‑frame is available for each size to simplify installation and provide robust support for the grille edges under pedestrian loading.

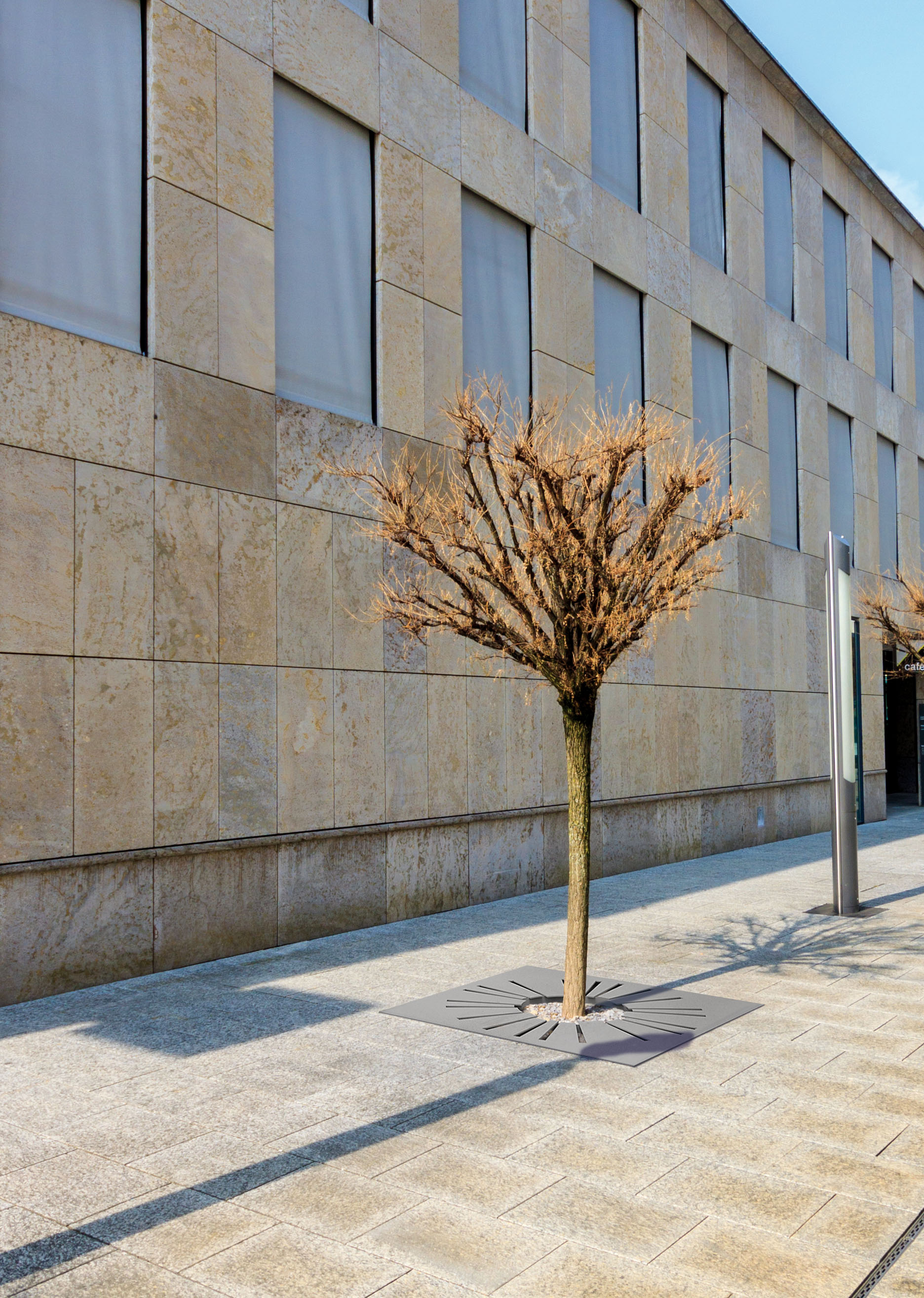

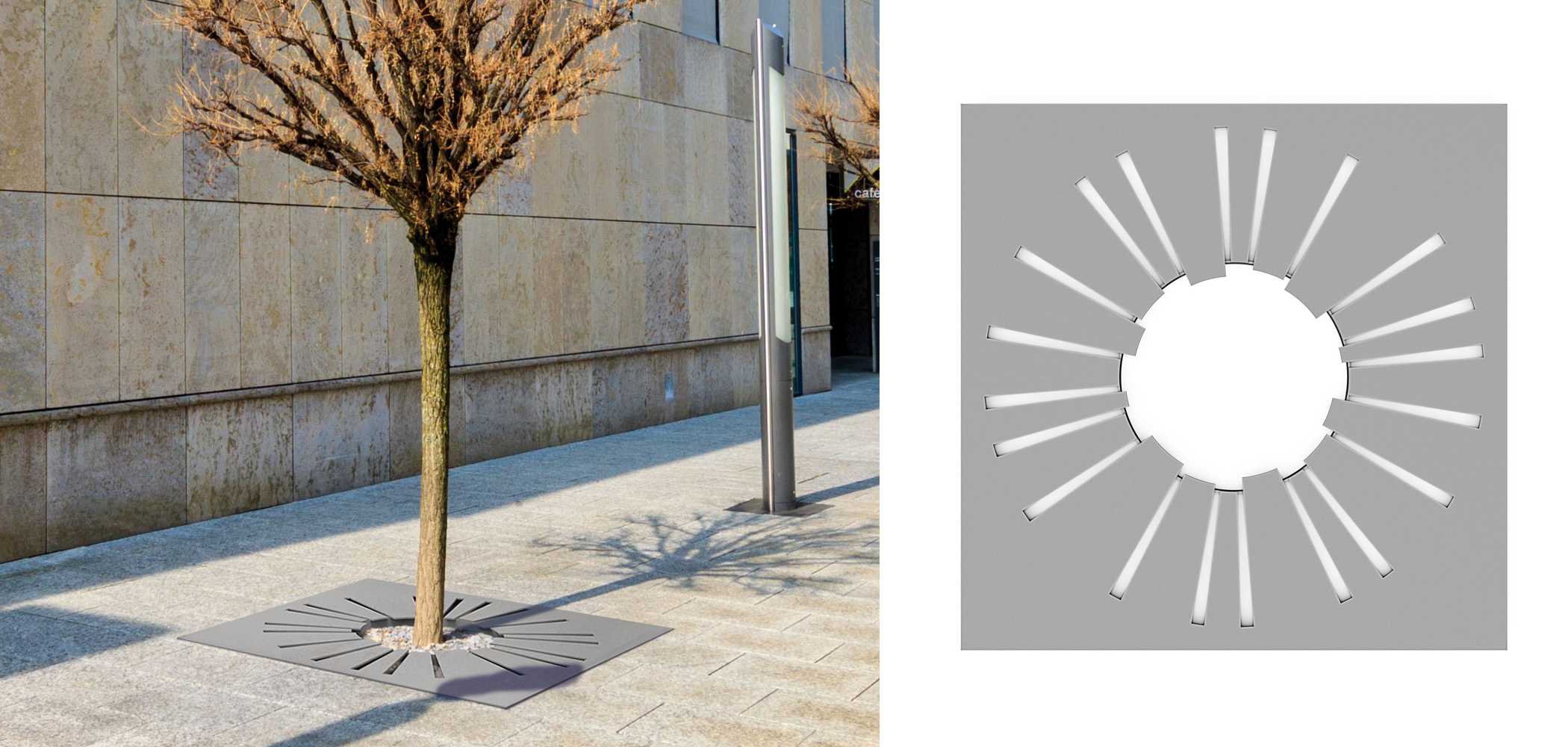

Sunny is designed for streetscapes, plazas, campuses and transport interchanges where resilient tree pit protection, level pedestrian surfaces and a distinctive contemporary pattern are required. [metalco.it]
