Louis Shelter
The Louis Shelter is a robust and adaptable canopy solution developed for modern public‑realm, transport, education and commercial environments.

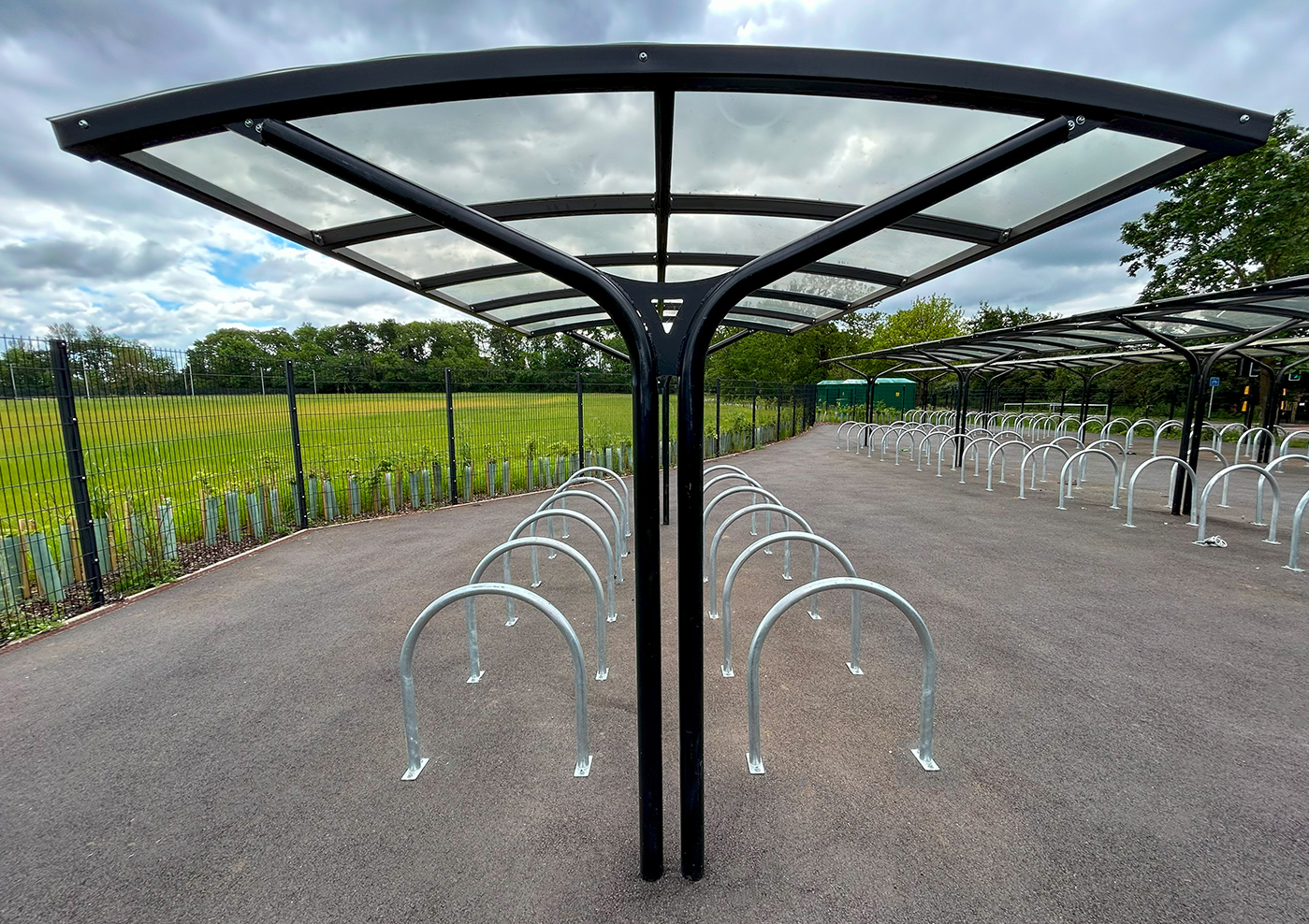

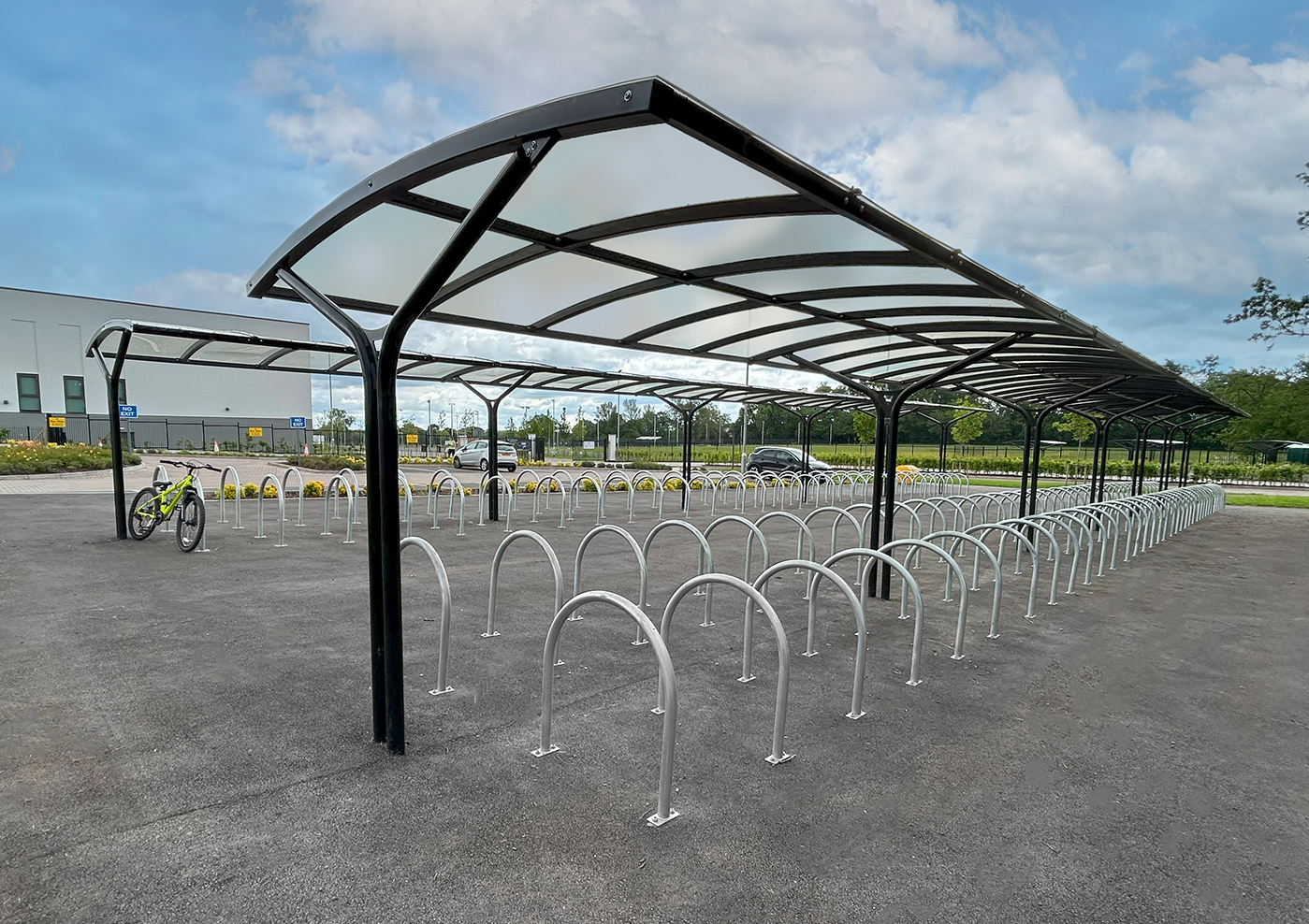

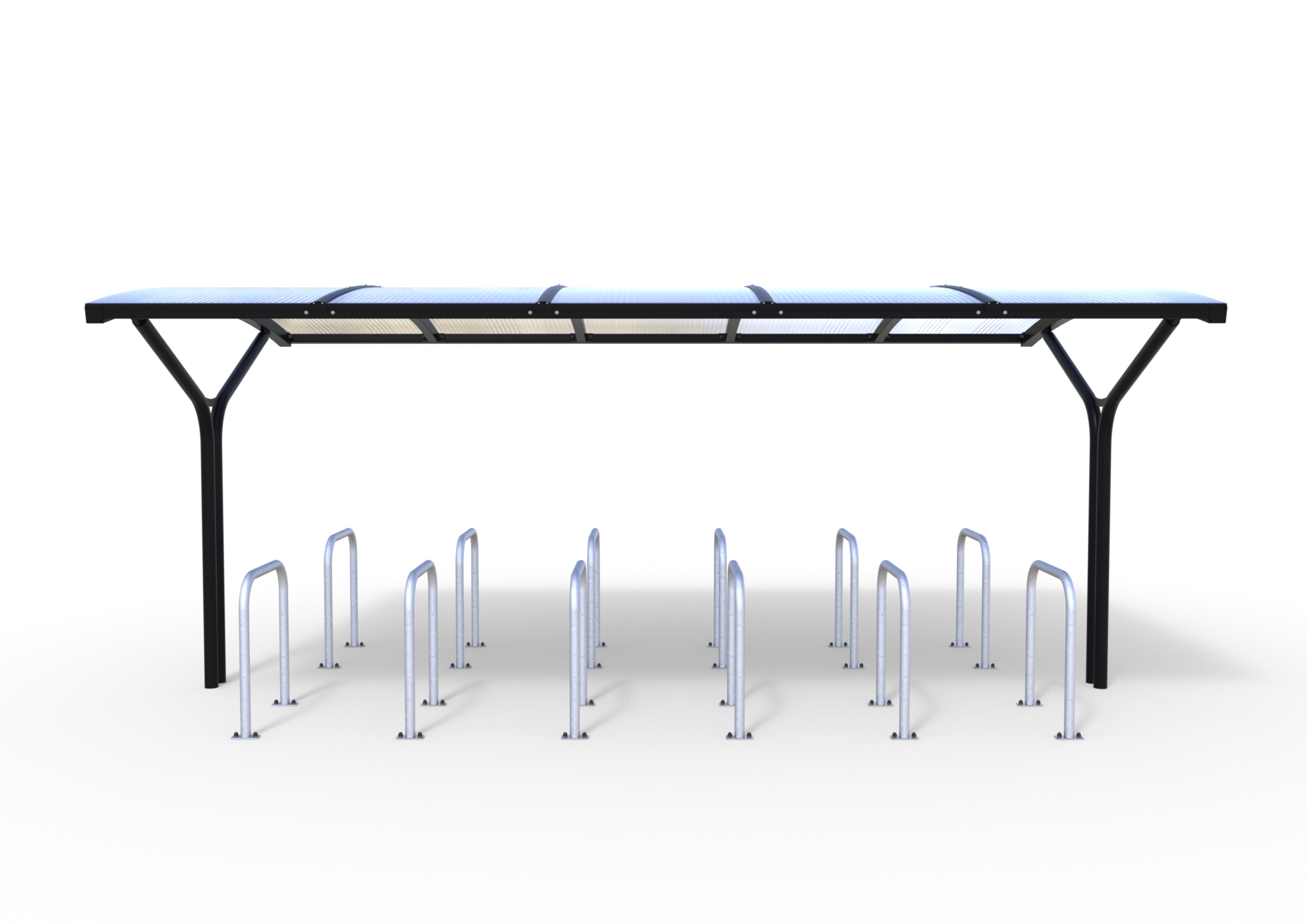

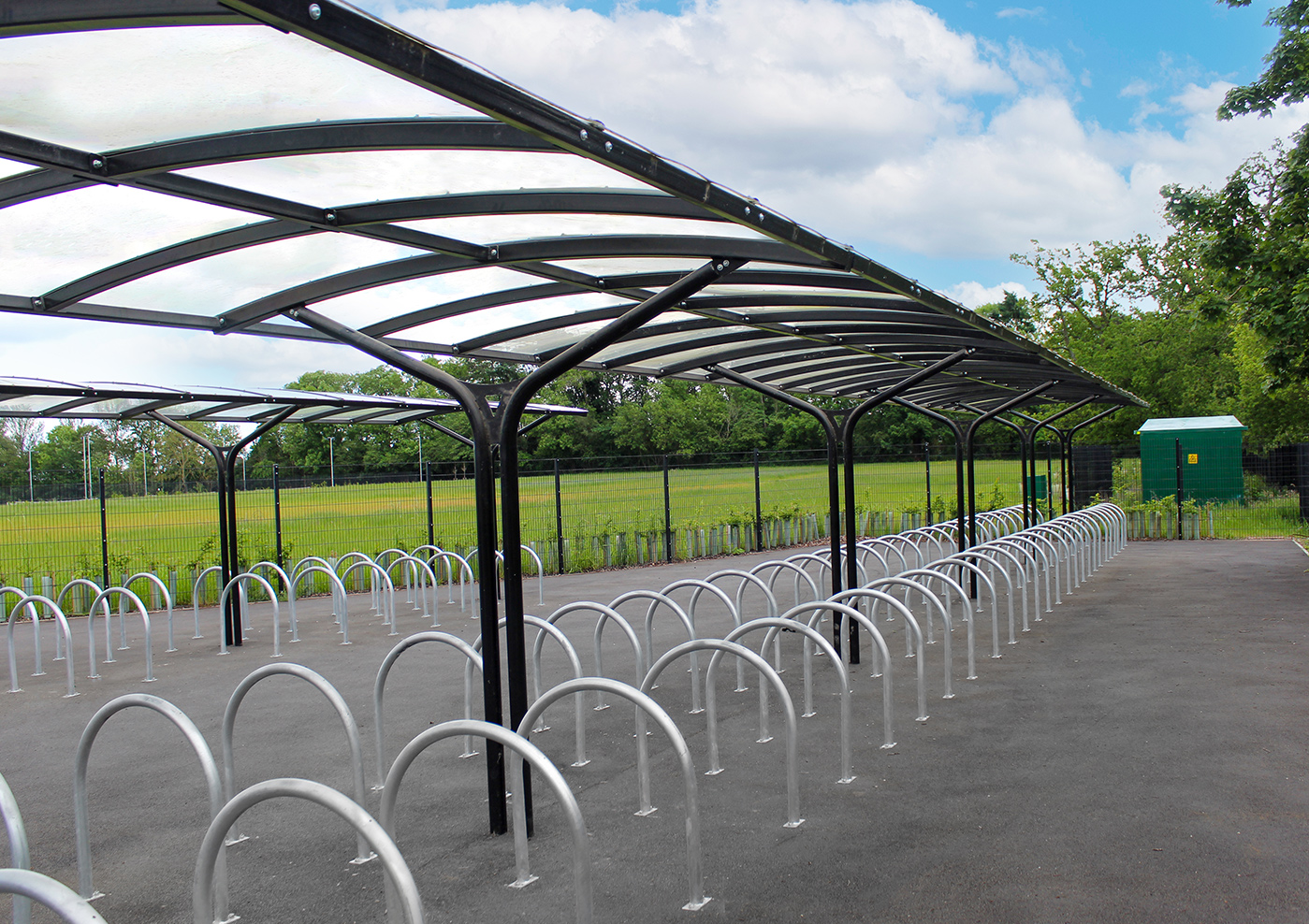

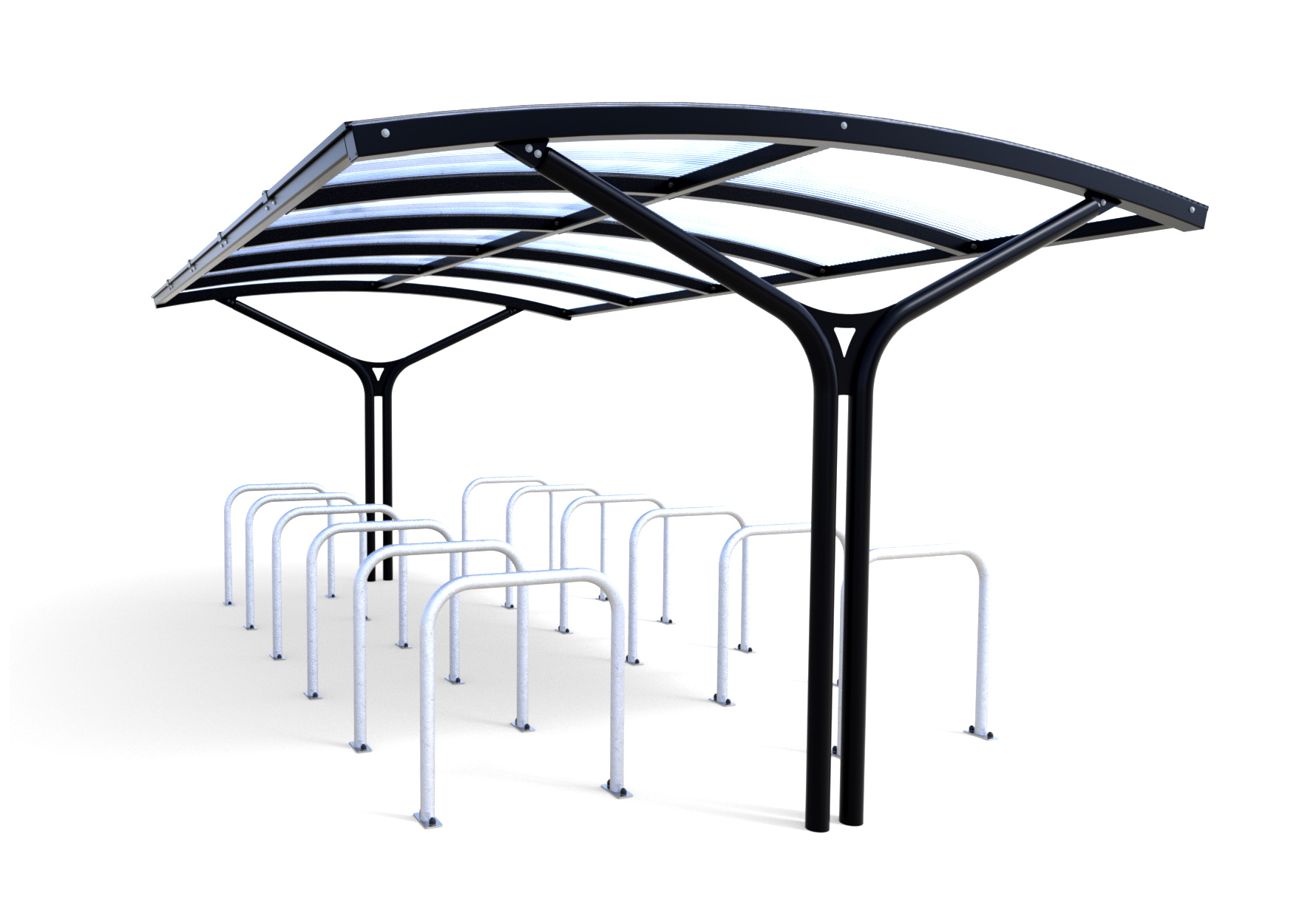

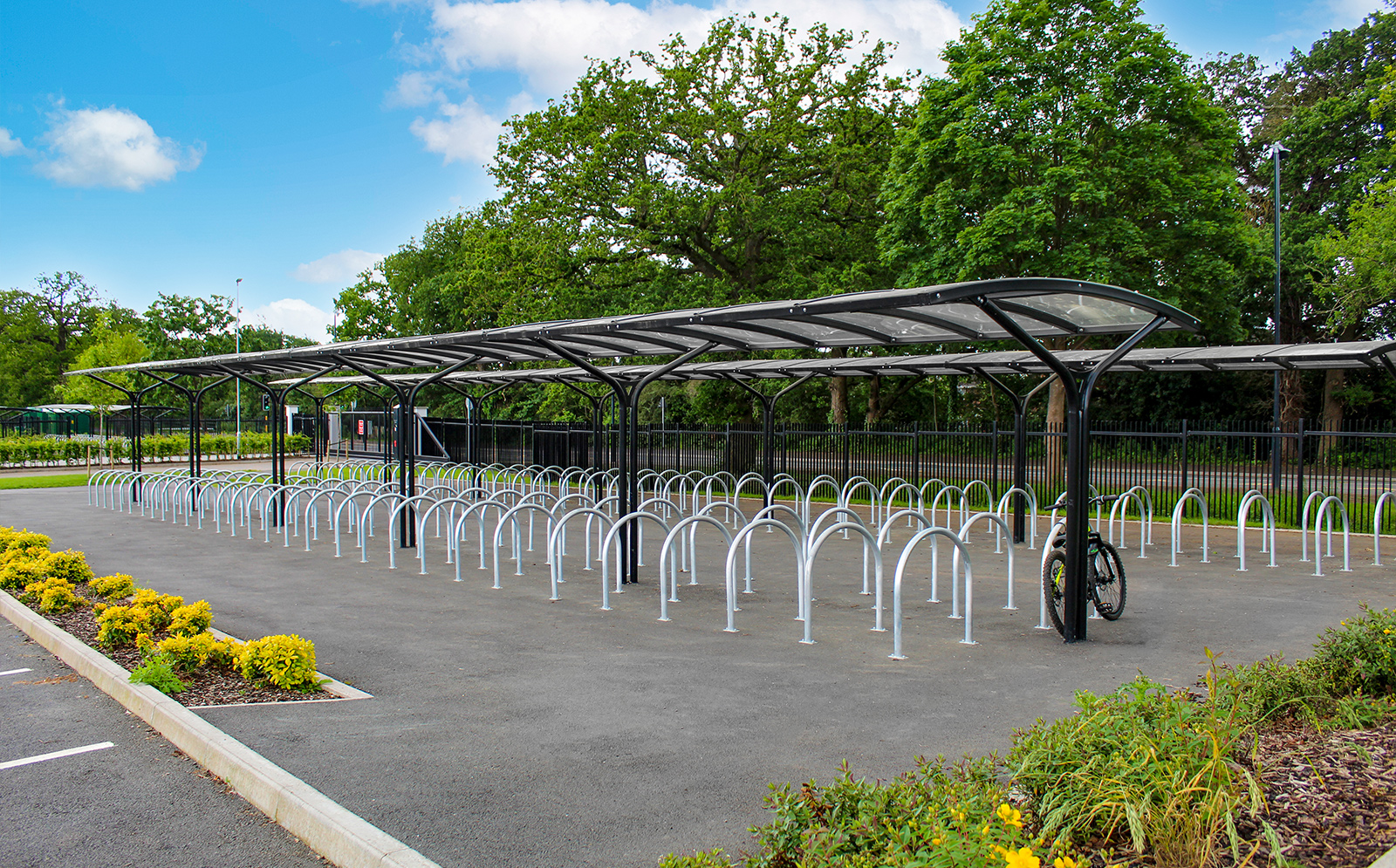

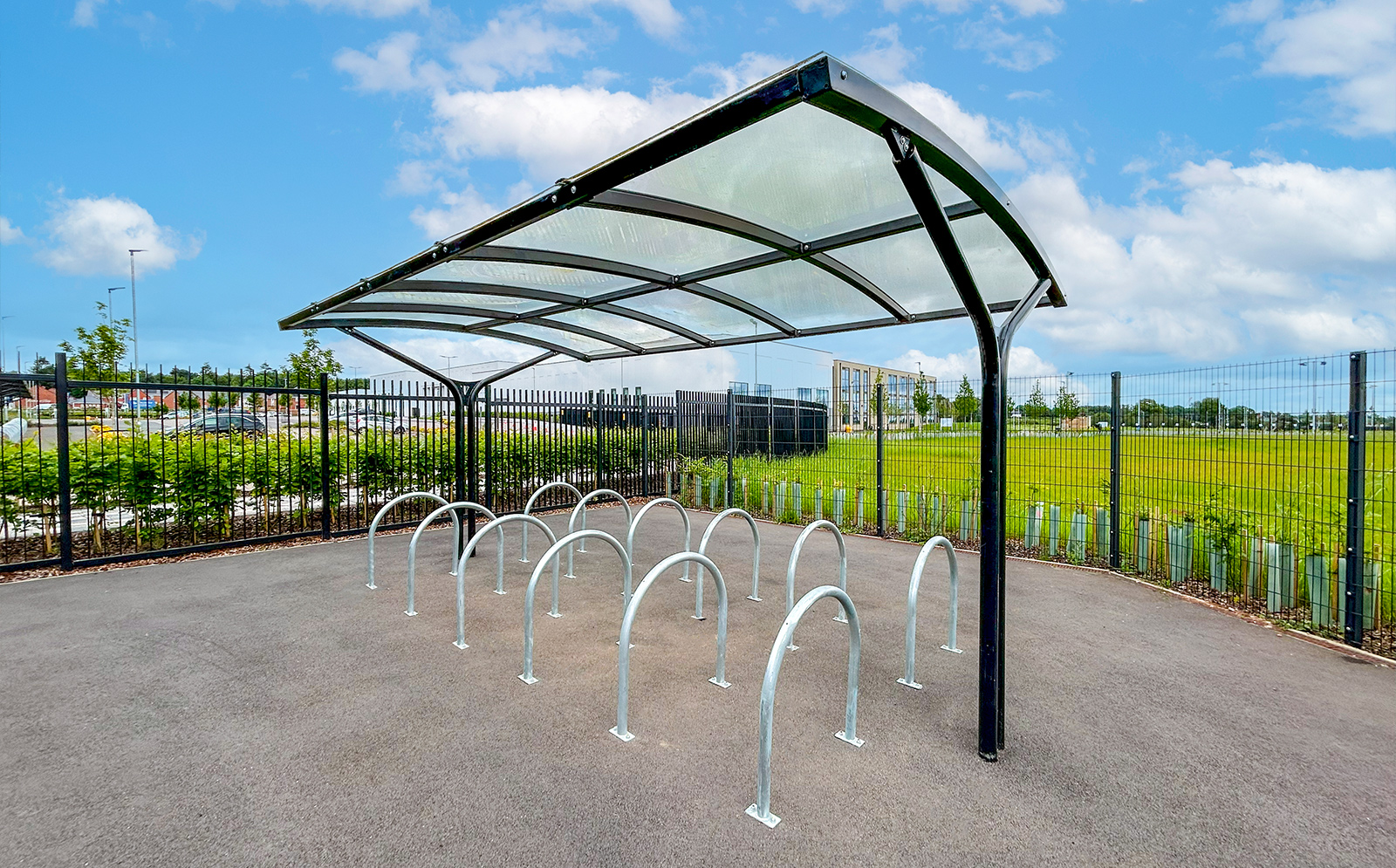

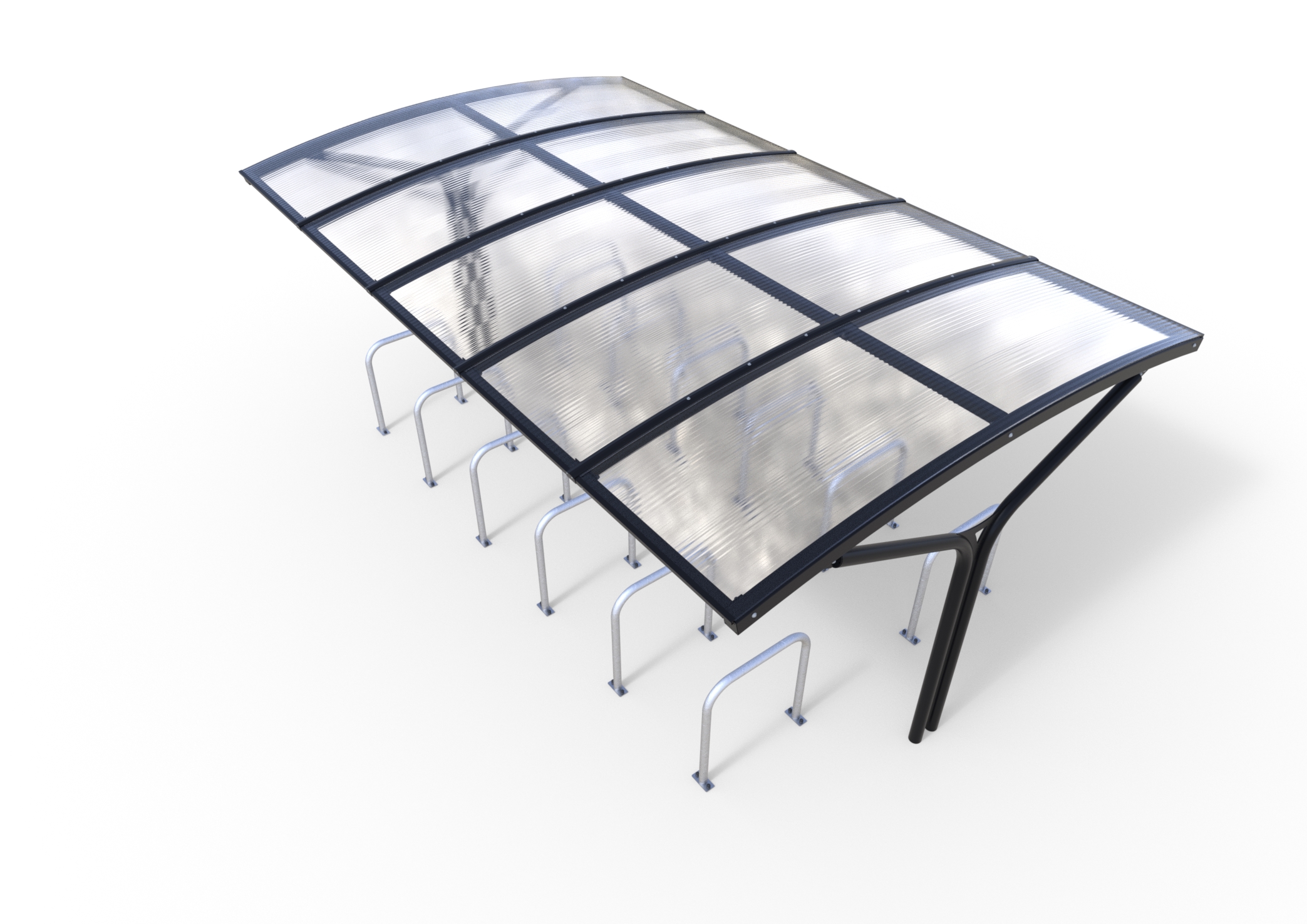

The shelter features a cantilevered barrel roof, tilted to the rear, supported by just two steel posts. This clear‑span configuration maximises the usable space beneath the shelter, making it particularly well suited to cycle parking layouts, pedestrian circulation and covered waiting areas. The extended roof depth provides approximately 3.2 m of shelter coverage, allowing for an additional row of cycle stands or use with larger formats such as motorcycle parking where required.
Manufactured from hot‑dip galvanised steel and produced in accordance with BS EN 1090, the Louis Shelter delivers long‑term structural performance with low maintenance demands. The frame can be supplied in a standard galvanised finish or powder‑coated in a range of RAL colour to meet architectural or branding requirements. Roof cladding is formed from PET clear sheeting, providing weather protection while maintaining high levels of light transmission and passive surveillance.

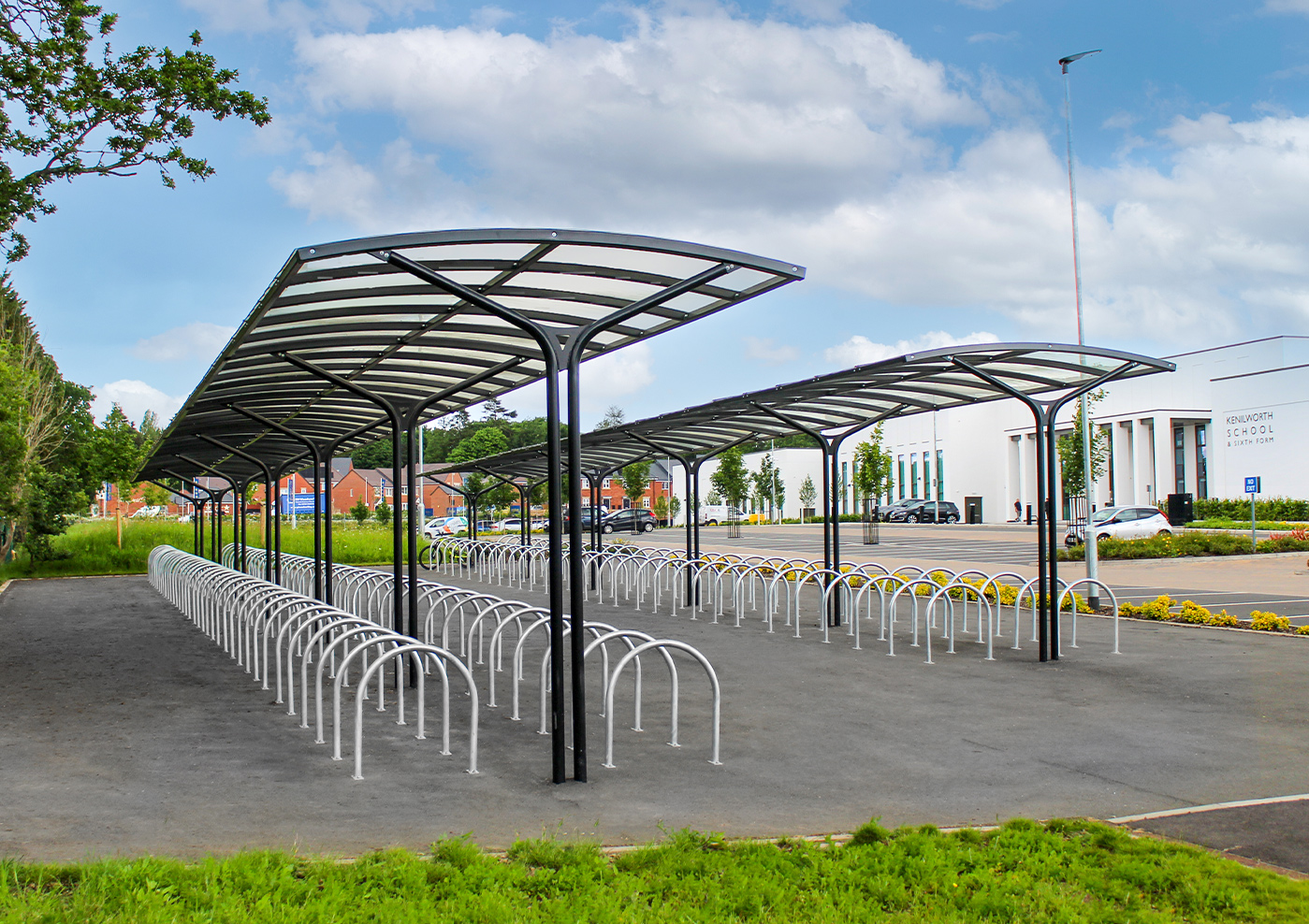

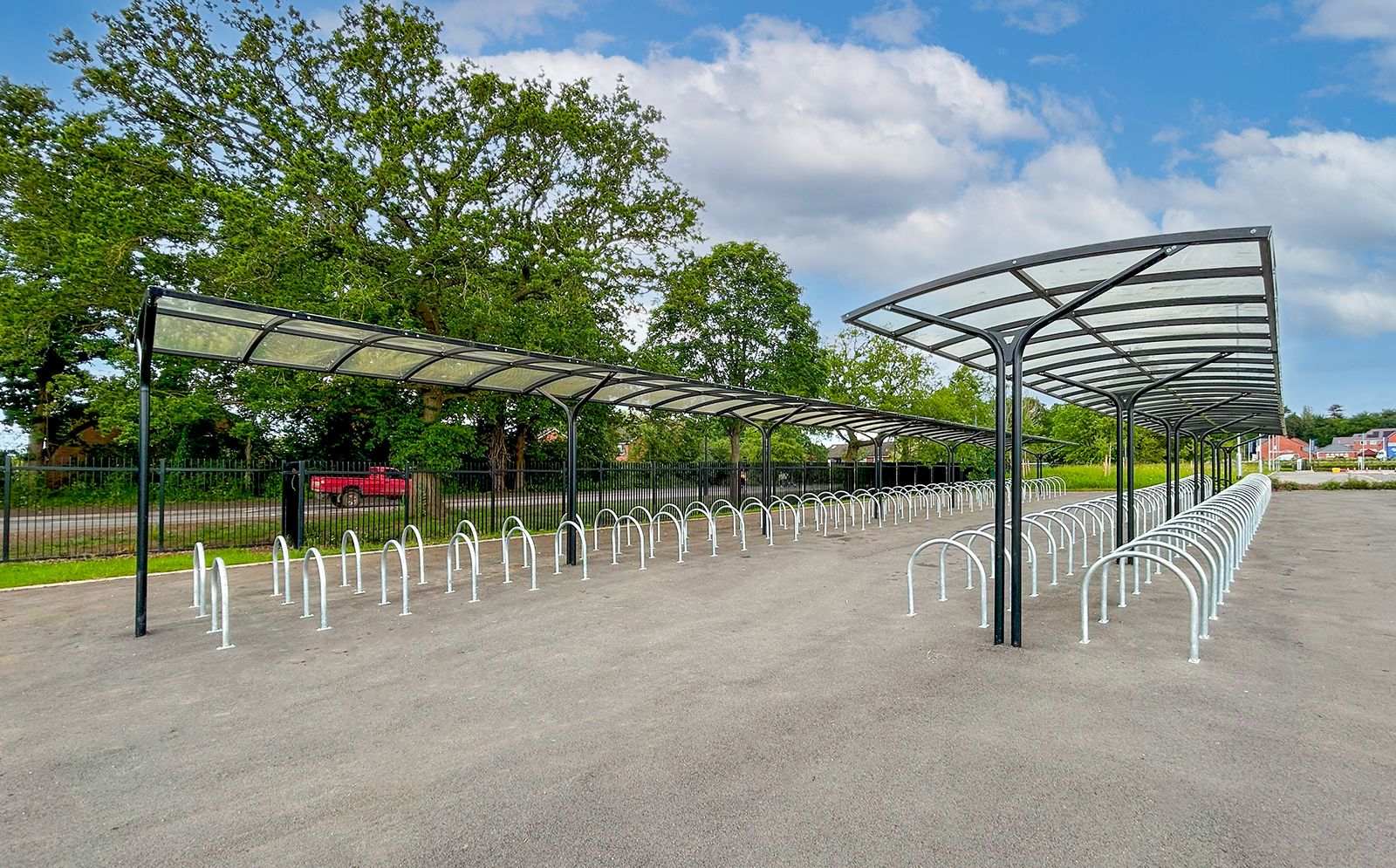

The Louis Shelter is supplied in standard 5‑metre modules and can be extended lengthways to create continuous sheltered zones. This modular approach allows the shelter to be used as a compact standalone unit or expanded to serve high‑capacity cycle parking areas across campuses and large developments. Root‑fixed or surface‑mounted installation options are available, providing flexibility for different ground conditions and project constraints.
| Condition Upon Delivery: | Disassembled |
|---|---|
| Country of Origin: | United Kingdom |
| Depth: | 3206 mm |
| Finishing / Treatment: | Galvanised, Powder Coated |
| Height: | 2481 mm |
| Length: | 5260 mm, 10200 mm, 15260 mm |
| Lowest Roof Height: | 2212 mm |
| Material: | Steel |
| Mounting Options: | Surface Mounted |
| Roof Material: | Polyethylene |
| Roof Type: | Barrel Roof |
| Type: | Bike Shelter |
Login
Please select your desired product configuration below.
POA
Price on applicationAccessories
Installation / fixing method
This Product can be customised with a range of optional fixtures. If you have any further bespoke requirements get in touch, our sales team will be happy to help.
