Loop Arc
Loop Arc

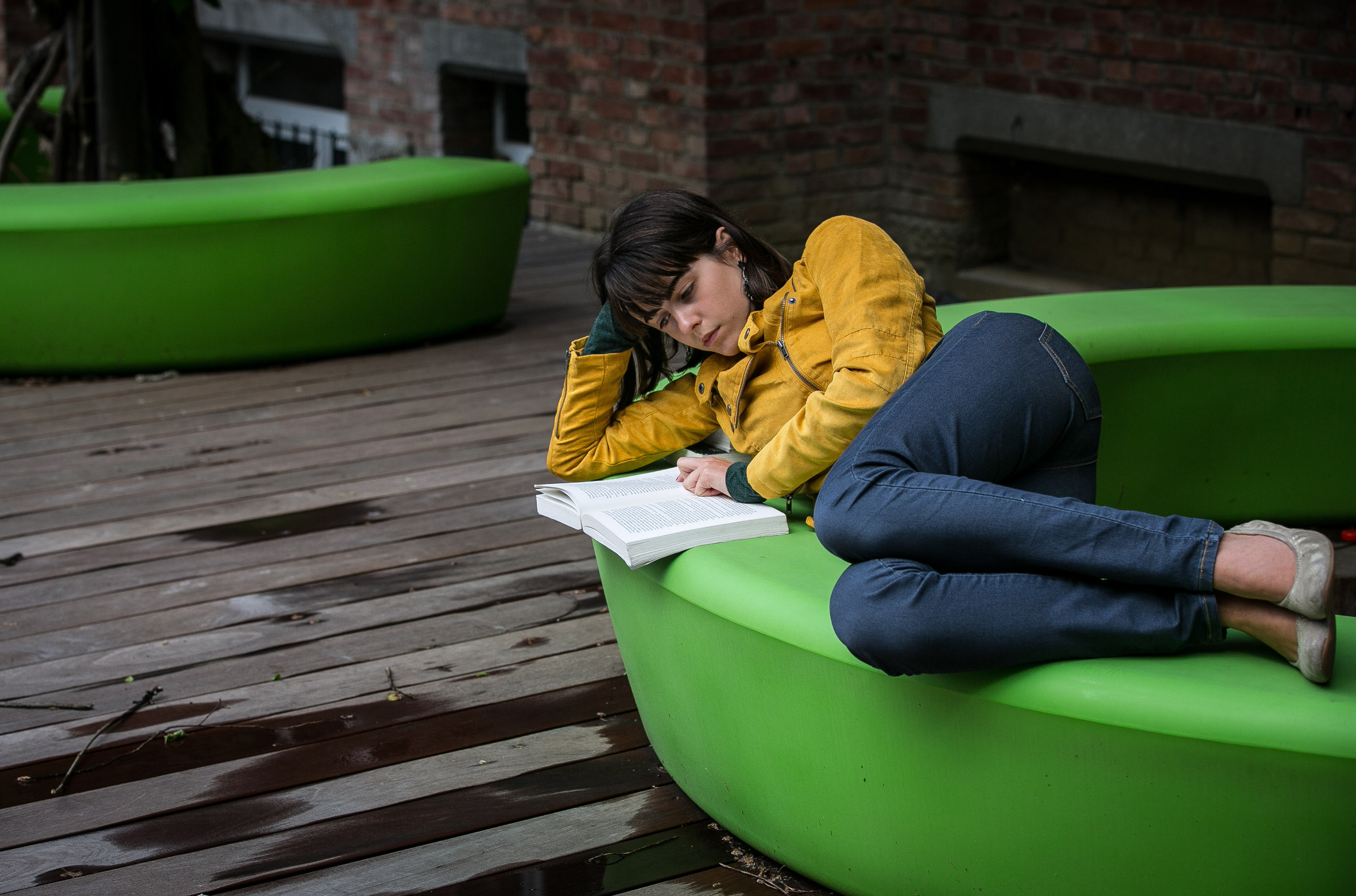

The Loop Arc is a key component of the Loop modular furniture system, developed to introduce curvature, movement and informal social interaction into outdoor environments. Formed as a curved seating module, Loop Arc allows designers to move away from rigid linear layouts and instead create circular hubs, open arcs or serpentine seating forms that naturally encourage gathering and interaction.
Manufactured from rotation‑moulded polyethylene with a thickness of approximately 6–7 mm, the Loop Arc delivers excellent durability in demanding outdoor conditions. The material is UV‑resistant, impact‑resistant and weather‑resilient, making it suitable for high‑footfall public environments. A lightly textured surface finish, created during the moulding process, improves grip and reduces slip risk, increasing safety for both seated and active use. Each unit is moulded in one piece, ensuring structural strength and a clean visual appearance.

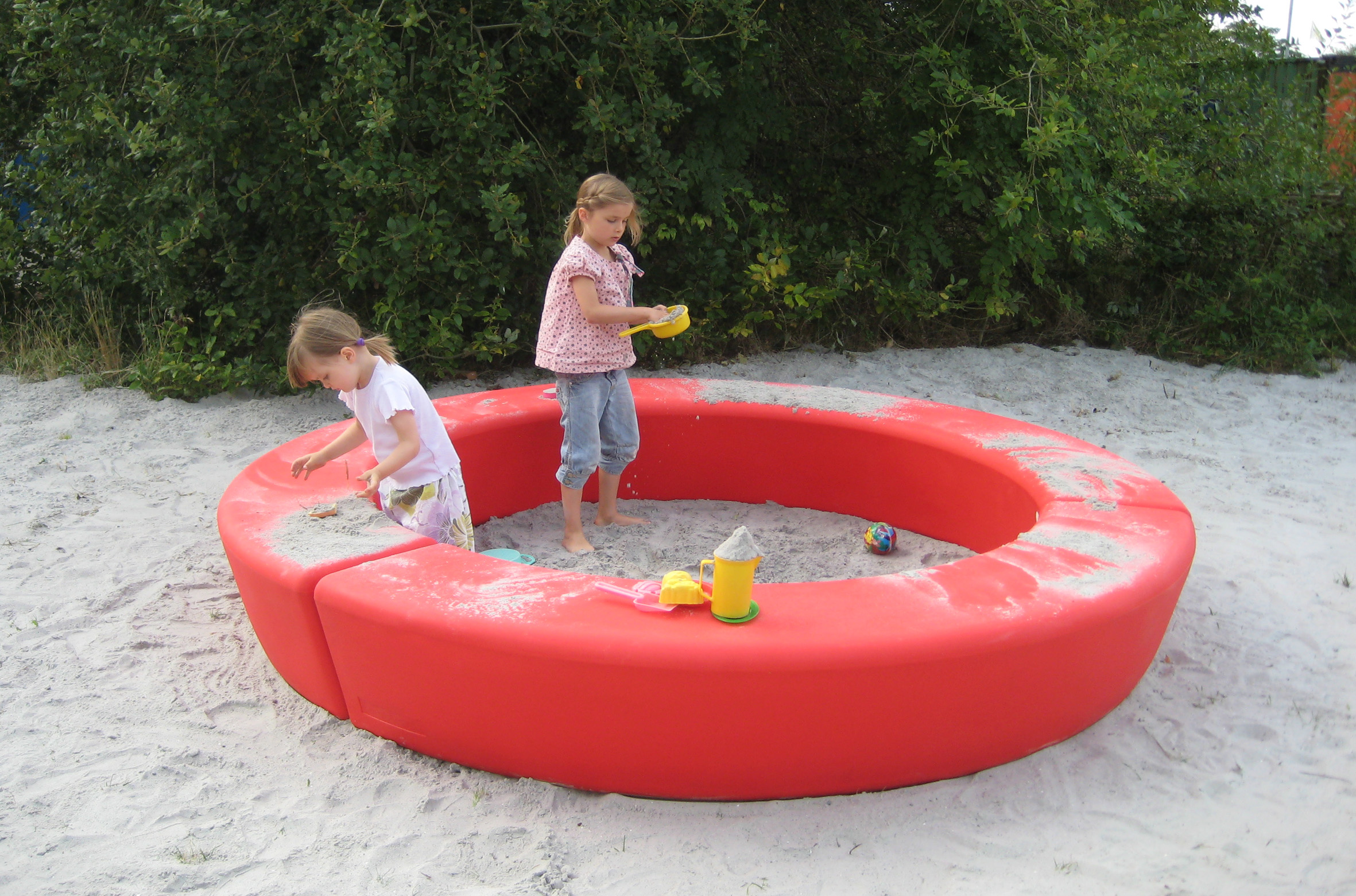

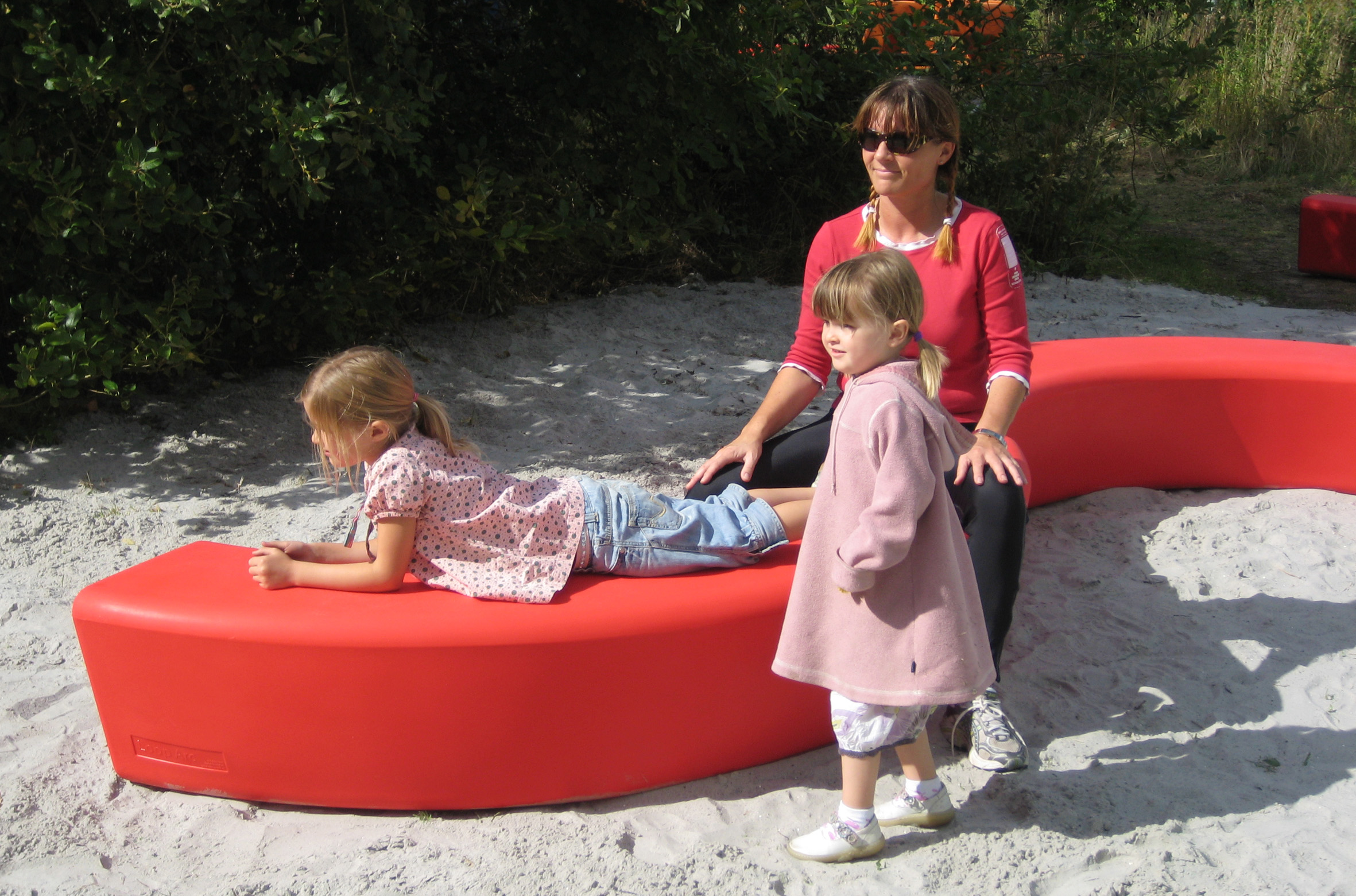

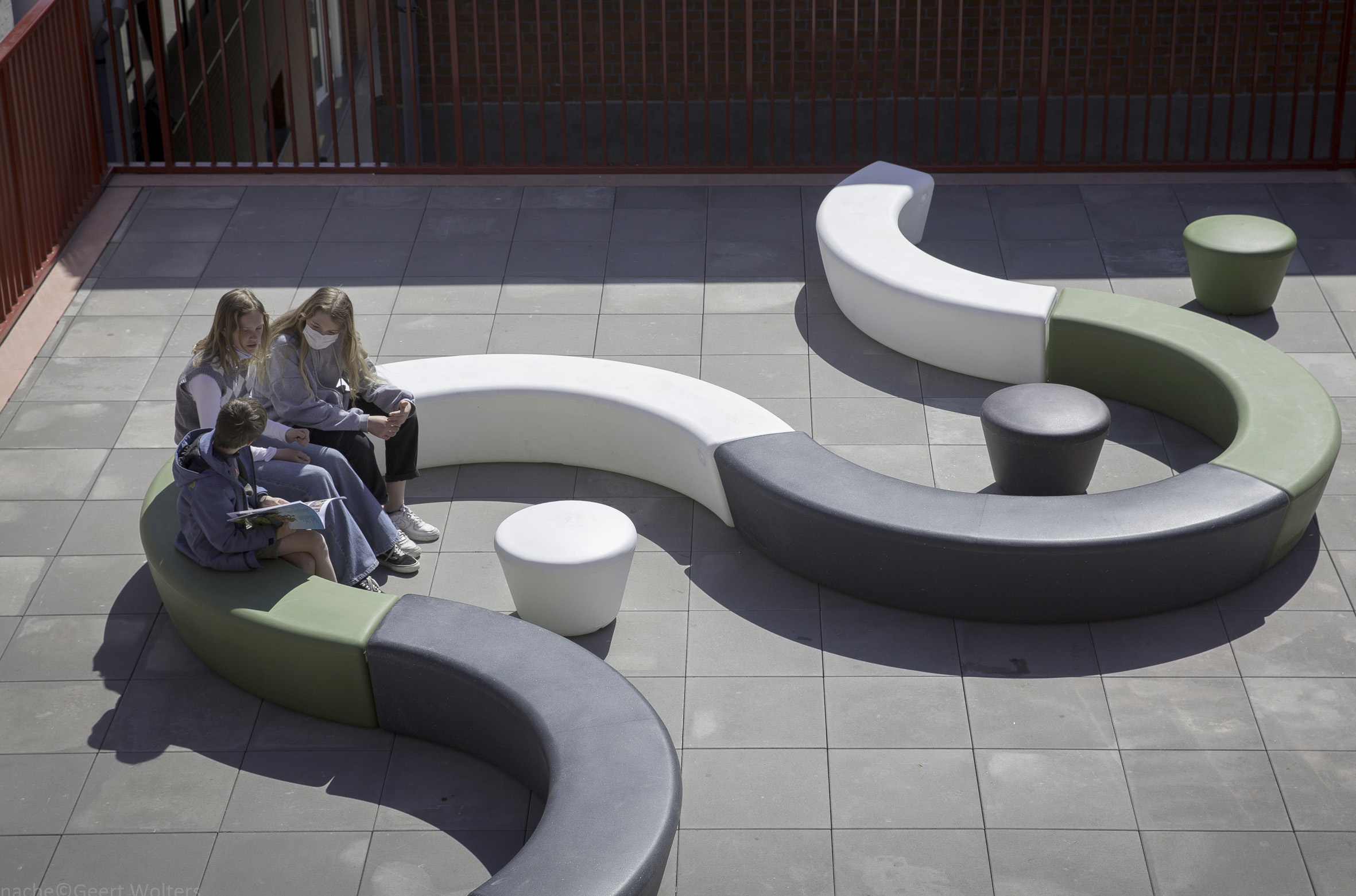

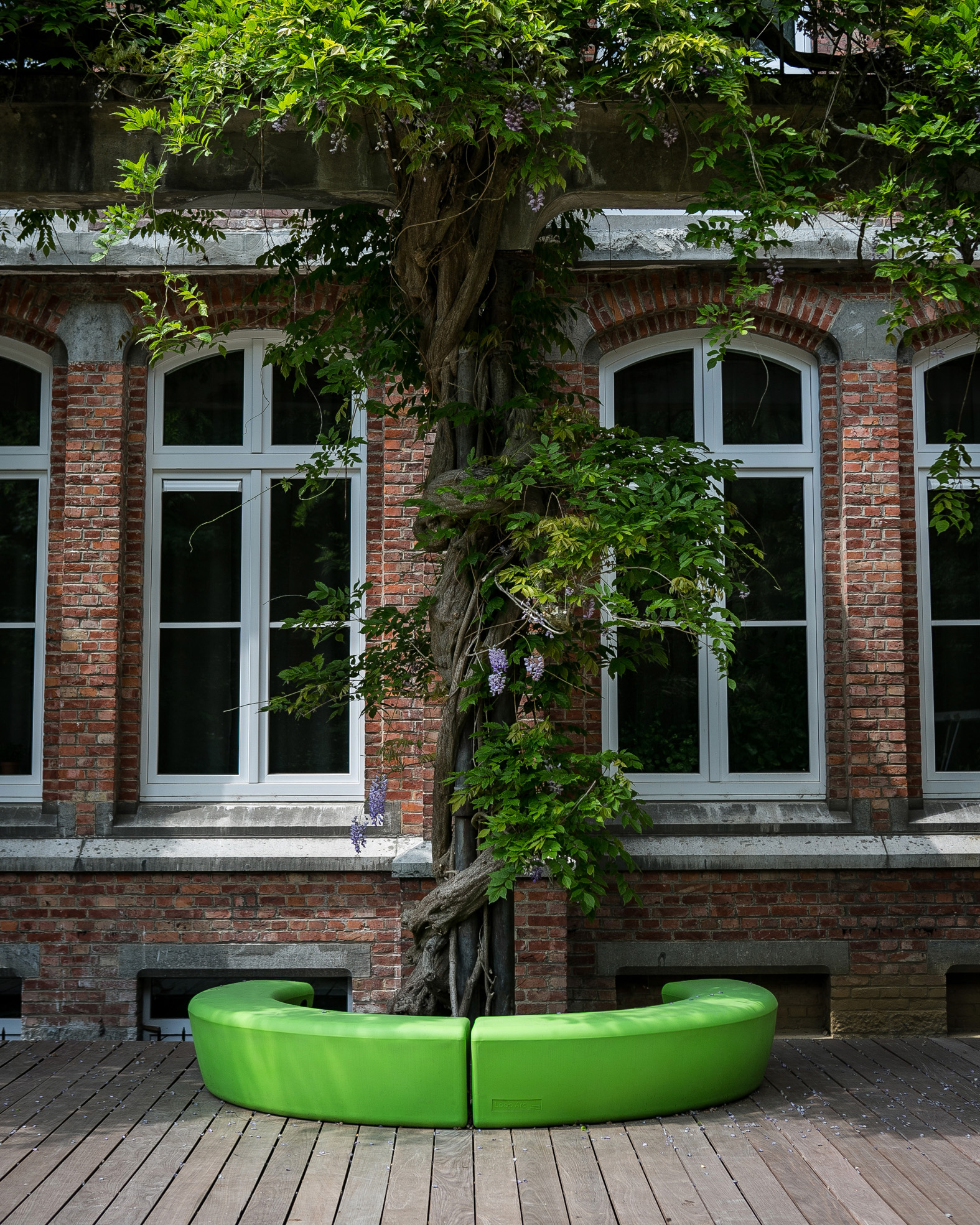

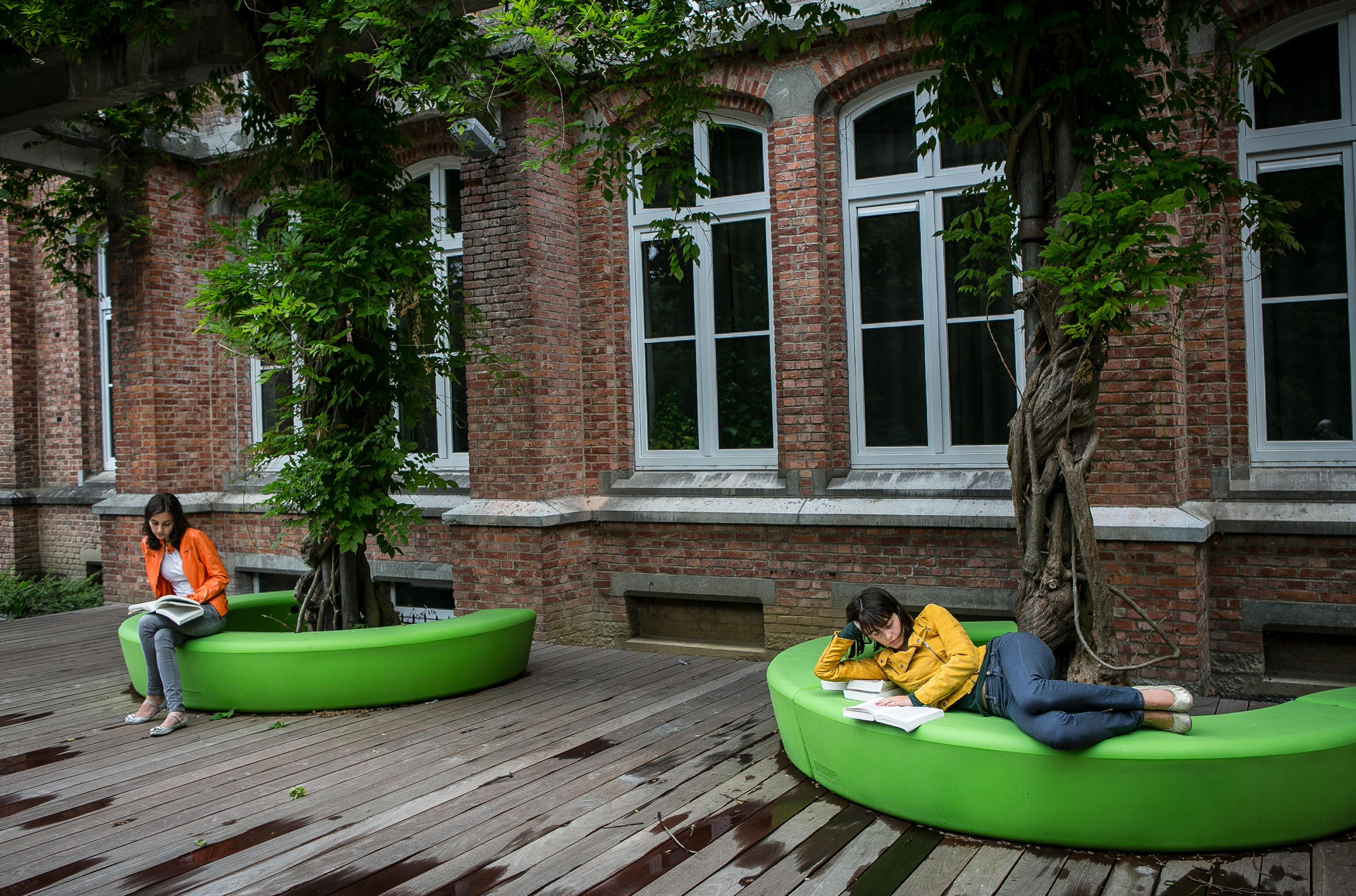

A single Loop Arc module provides seating for approximately 3–4 people, while multiple modules can be combined to create a wide variety of configurations. For example, three Arc modules can form a complete circular seating arrangement, while two or more units can create open “C” or “S”‑shaped forms. Loop Arc units can also be combined with Loop Corner or Loop Line elements to shape spaces such as playgrounds, sandpits, ball courts or informal gathering zones.
Installation options include freestanding placement, weighting internally with water or sand, or ground or surface fixing using brackets, allowing deployment to suit a wide range of site conditions and security requirements. Maintenance is minimal: the surface withstands most cleaning agents, can be pressure‑washed, and its colour can be refreshed if required. Recycled polyethylene versions are available, supporting circular‑economy and sustainability objectives in public‑realm projects.
#15 Pastel Blue RAL 5024 Premium
#50 White RAL 9003 Premium
#13 Grey RAL 7015 Premium
#9 Purple RAL 4004 Premium
#2 Lime Green RAL 120 70 60 Standard
#16 Mokka Brown RAL 8028 Premium
#3 Orange RAL 2003 Standard
#4 Yellow RAL 1018 Premium
Recycled Plastic
#18 Olive Green RAL 6025 Premium
#11 Sandstone Premium
#17 Blue RAL 5010 Premium
#1 Red RAL 3020 Standard
| 2D DWG Available: | Yes |
|---|---|
| 3D DWG Available: | Yes |

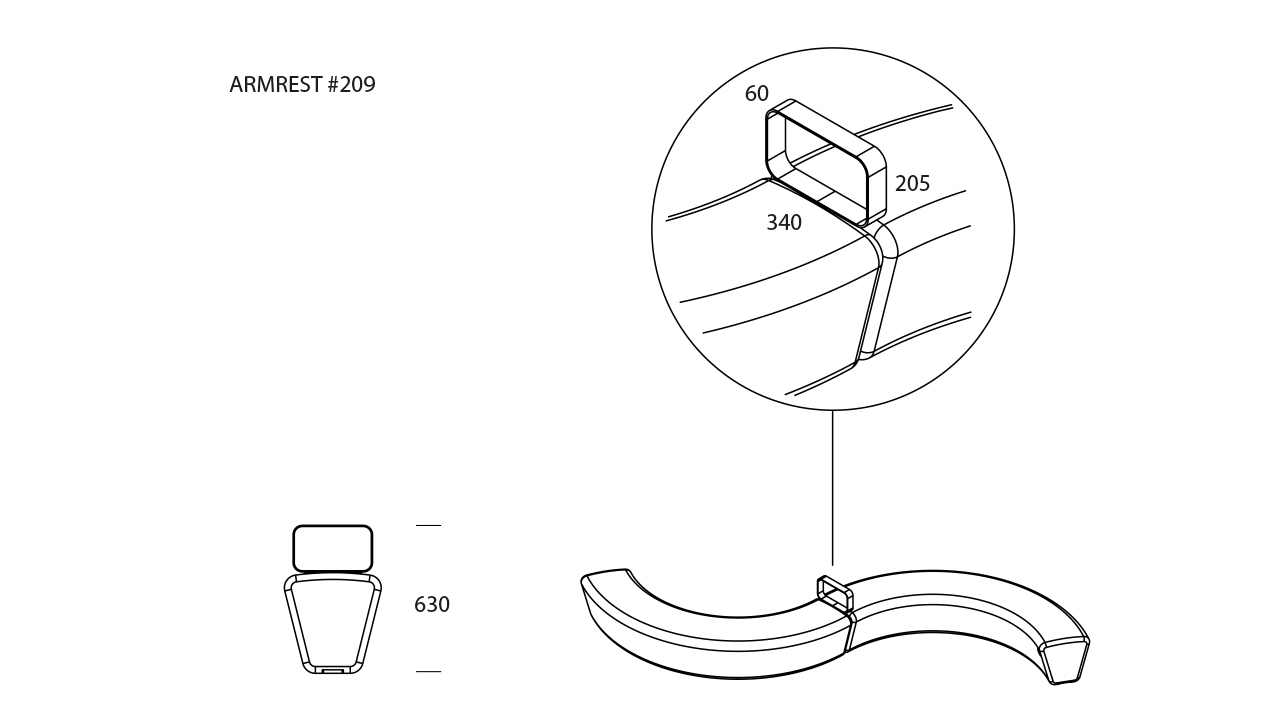

| Armrest Depth: | 340 mm |
| Armrest Height: | 205 mm |
| Armrest Length: | 60 mm |
| BIM Object Available: | Yes |
| Country of Origin: | Denmark |

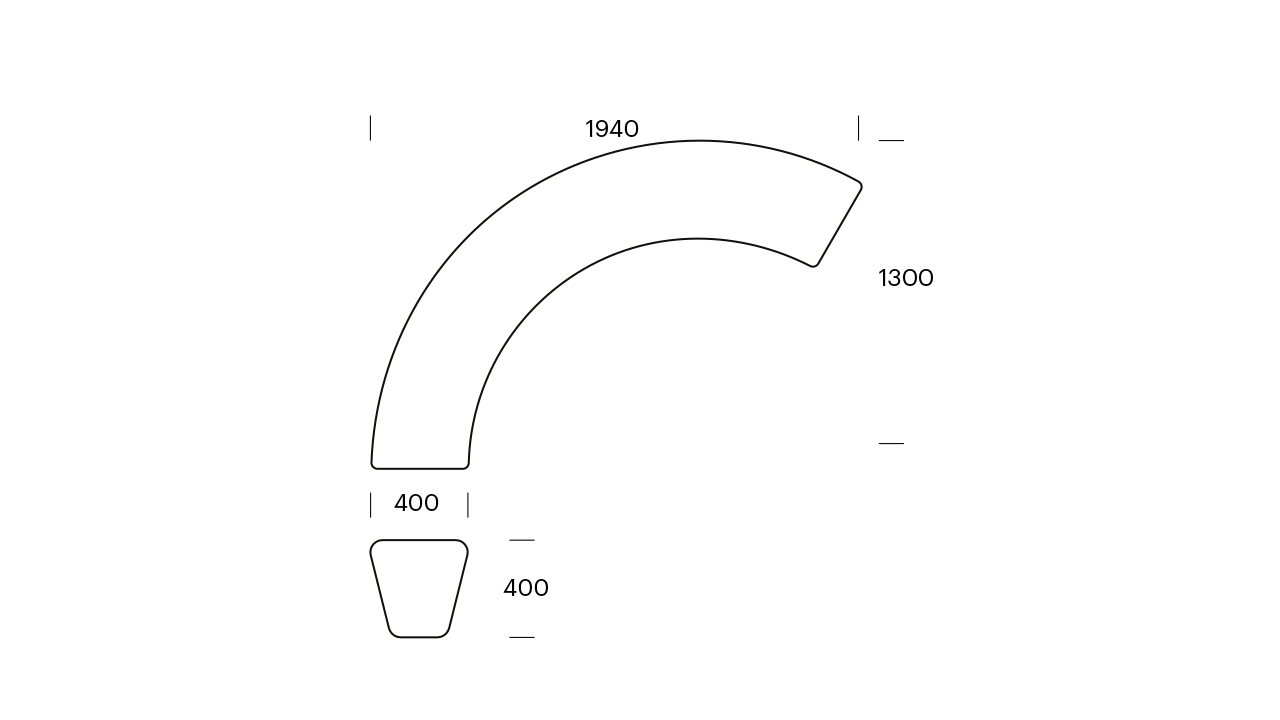

| Depth: | 400 mm, 1300 mm |
| Expected Lifetime: | 30 Years |
| Height: | 400 mm, 8 mm |
| Internal Radius: | 1300 mm |
| Length: | 1940 mm |
| Material: | Rotation Moulded Polyethylene, Rubber, Stainless Steel Grade 304 |
| Mounting Options: | Free Standing |
| NBS Source Listed: | Yes |
| Number of Seats: | 4 |
| Out-Sider PE Colours: | #1 Red RAL 3020 Standard, #2 Lime Green RAL 120 70 60 Standard, #3 Orange RAL 2003 Standard, #4 Yellow RAL 1018 Premium, #9 Purple RAL 4004 Premium, #11 Sandstone Premium, #13 Grey RAL 7015 Premium, #15 Pastel Blue RAL 5024 Premium, #16 Mokka Brown RAL 8028 Premium, #17 Blue RAL 5010 Premium, #18 Olive Green RAL 6025 Premium, #50 White RAL 9003 Premium, Recycled Plastic |
| Planter Shape: | Curved |
| Recyclable: | Yes |
| Seat Depth: | 400 mm |
| Seat Height: | 400 mm |
| Weight: | 24 kg |
Login
POA
Price on applicationInstallation / fixing method
This Product can be customised with a range of optional fixtures. If you have any further bespoke requirements get in touch, our sales team will be happy to help.
