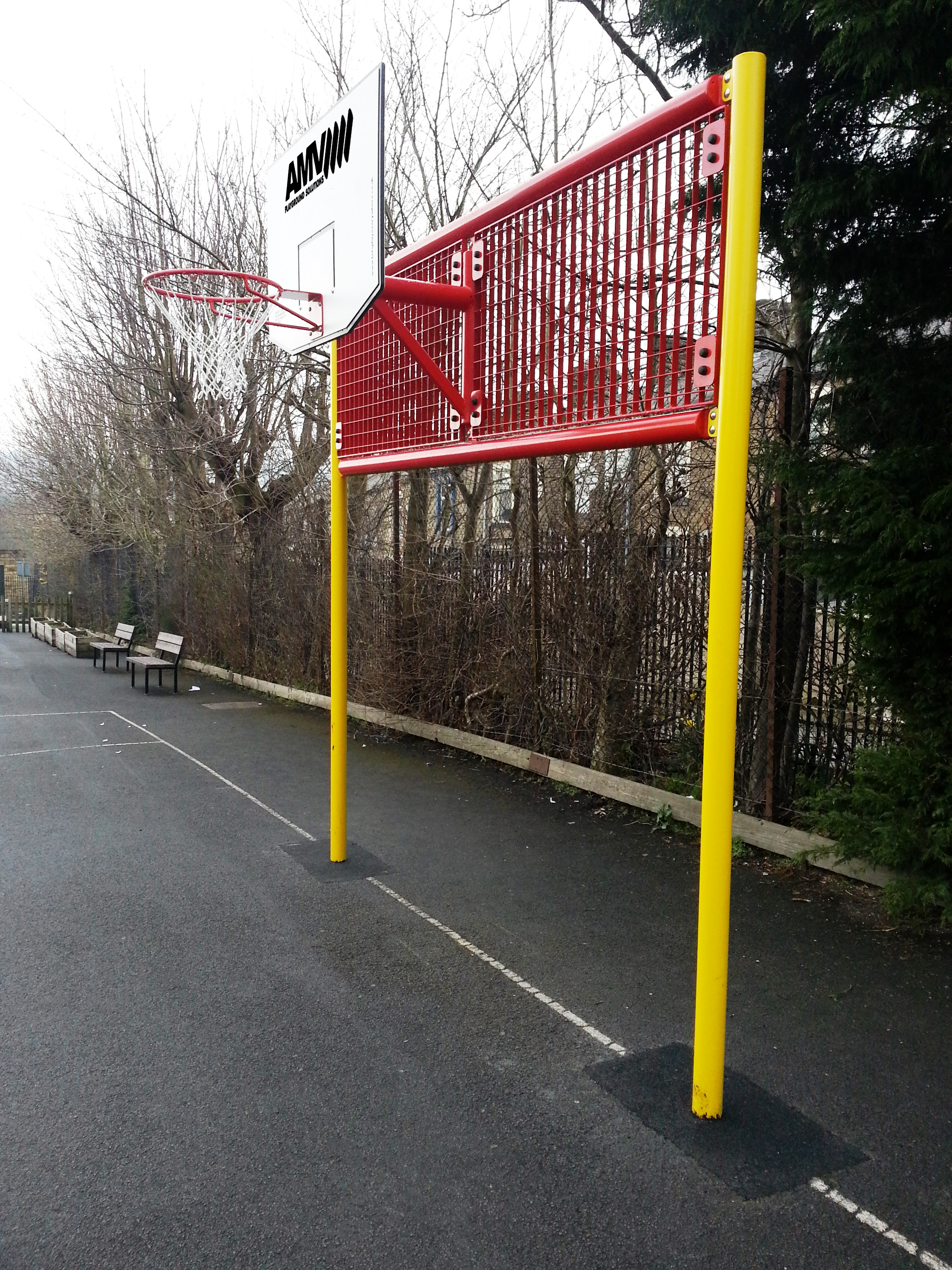

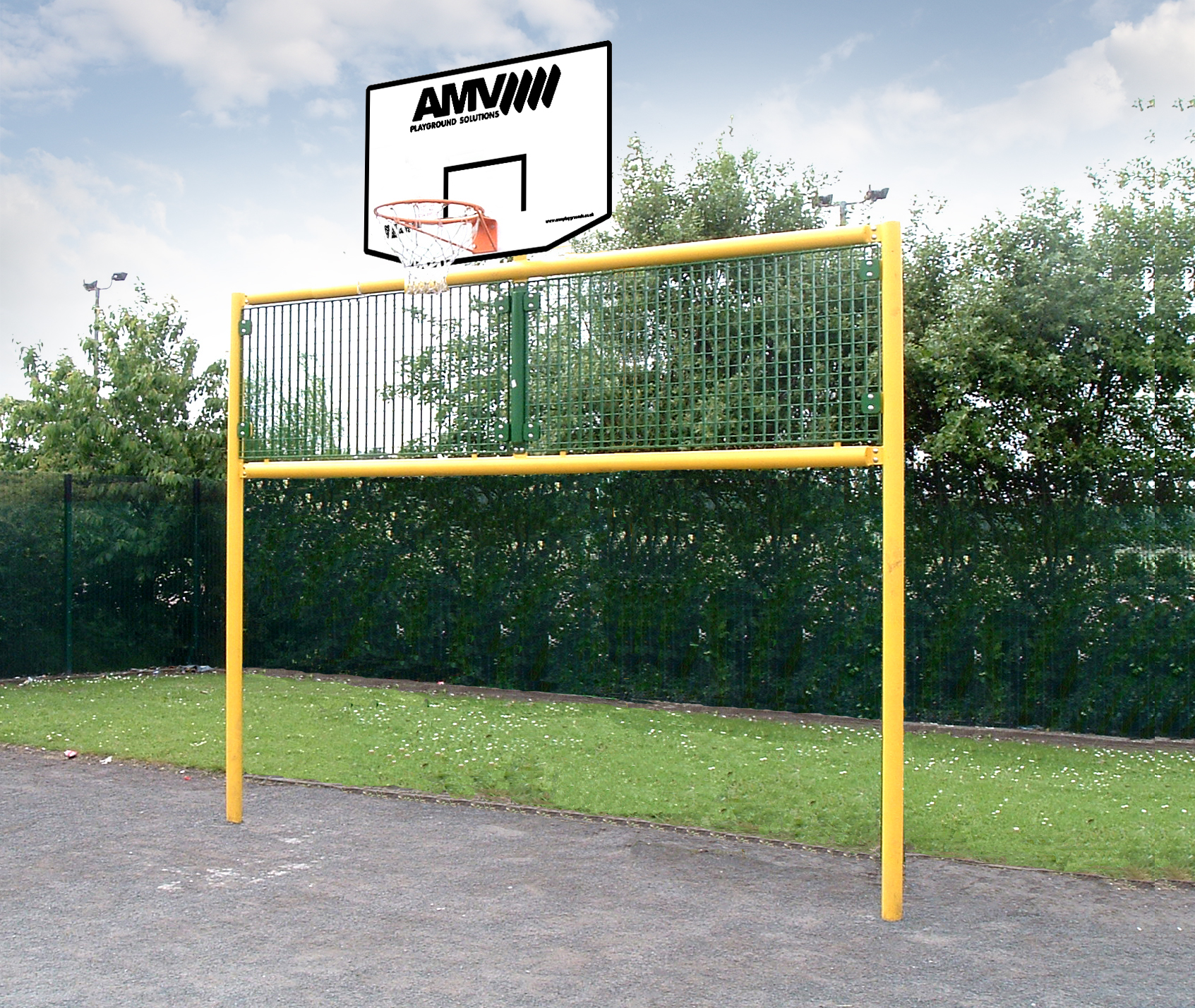

KS3+ Goal Frame 23 (Basketball)
KS3+ Goal Frame 23 (Basketball)
The KS3 Goal Frame 23 is a versatile senior multi‑sport goal designed for secondary school and community use, particularly in areas where space is restricted. It can be installed individually or as a pair to support structured football and hockey activities. The frame includes a basketball ring at 3050mm, giving users the option to incorporate basketball into training and recreational play.
Its steel construction provides a sturdy 3000mm overall height, 3850mm width and 2000mm goal height, ensuring suitability for KS3/KS4 learners and adult users. The unit is made from mild steel in accordance with BS EN 10210‑1 and BS EN 10210‑2 standards, fully galvanised for rust protection, and polyester powder coated to BS 6497 for a durable finish. It is vandal‑resistant, child‑safe with reduced finger‑trap hazards, 100% weatherproof and virtually maintenance‑free. Optional cricket wickets and target panels can be added, and the product is available in a wide range of RAL colours. Designed in line with BS EN 15312:2007 and BS EN 1270:2005, it meets recognised multi‑sport safety standards.
Galvanised
BSFG RAL 6001
BSFG RAL 7008
BSFG RAL 1013
BSFG RAL 7035
BSFG RAL 6027
BSFG RAL 2002
BSFG RAL 5015
BSFG RAL 5021
BSFG RAL 9005
BSFG RAL 3020
BSFG RAL 1023
BSFG RAL 2004
BSFG RAL 9006
BSFG RAL 1027
BSFG RAL 8017
BSFG RAL 7001
BSFG RAL 6018
BSFG RAL 6019
BSFG RAL 7039
BSFG RAL 8007
BSFG RAL 5024
BSFG RAL 9016
BSFG RAL 3005
BSFG RAL 4009
BSFG RAL 1028
BSFG RAL 5013
BSFG RAL 4005
BSFG RAL 7012
BSFG RAL 7016
| Age Suitability: | 13-18 |
|---|---|
| BSFG RAL Colours Palette: | Galvanised, BSFG RAL 1013, BSFG RAL 1023, BSFG RAL 1027, BSFG RAL 1028, BSFG RAL 2002, BSFG RAL 2004, BSFG RAL 3005, BSFG RAL 3020, BSFG RAL 4005, BSFG RAL 4009, BSFG RAL 5013, BSFG RAL 5015, BSFG RAL 5021, BSFG RAL 5024, BSFG RAL 6001, BSFG RAL 6018, BSFG RAL 6019, BSFG RAL 6027, BSFG RAL 7001, BSFG RAL 7008, BSFG RAL 7012, BSFG RAL 7016, BSFG RAL 7035, BSFG RAL 7039, BSFG RAL 8007, BSFG RAL 8017, BSFG RAL 9005, BSFG RAL 9006, BSFG RAL 9016 |
| Basketball Hoop / Netball Ring Height: | 3050 mm |
| Basketball or Netball: | Basketball |
| Country of Origin: | United Kingdom |
| Finishing / Treatment: | Galvanised, Powder Coated |
| Goal Height: | 2000 mm |
| Goal Length: | 3850 mm |
| Goal Mouth Style: | Open Goal |
| Height: | 3000 mm |
| Key Stage: | Key Stage 3 |
| Length: | 3850 mm |
| Material: | Steel |
| Mounting Options: | Root Fixed |
| Side Panels: | No |
| Upper Rebound Panel: | Yes |
| Upper Rebound Panel Height: | 1000 mm |
| Upper Rebound Panel Length: | 3850 mm |
Login
£2,772.00
Excl. VAT£3,326.40 Incl. VAT
Installation / fixing method
This Product can be customised with a range of optional fixtures. If you have any further bespoke requirements get in touch, our sales team will be happy to help.
FAQ
Overall height 3000mm, overall width 3850mm, goal height 2000mm.
The ring is mounted at 3050mm.
It is suitable for adults and children aged 11 and over (KS3/KS4).
Yes, it is designed in accordance with BS EN 15312:2007 and BS EN 1270:2005.
