KS1 Infant Goal Unit 2 (Basketball)
KS1 Infant Goal Unit 2 (Basketball)
Galvanised
BSFG RAL 6001
BSFG RAL 7008
BSFG RAL 1013
BSFG RAL 7035
BSFG RAL 6027
BSFG RAL 2002
BSFG RAL 5015
BSFG RAL 5021
BSFG RAL 9005
BSFG RAL 3020
BSFG RAL 1023
BSFG RAL 2004
BSFG RAL 9006
BSFG RAL 1027
BSFG RAL 8017
BSFG RAL 7001
BSFG RAL 6018
BSFG RAL 6019
BSFG RAL 7039
BSFG RAL 8007
BSFG RAL 5024
BSFG RAL 9016
BSFG RAL 3005
BSFG RAL 4009
BSFG RAL 1028
BSFG RAL 5013
BSFG RAL 4005
BSFG RAL 7012
BSFG RAL 7016
| 2D DWG Available: | Yes |
|---|---|
| 3D Model Available (STEP/IFC): | Yes |
| Above Ground Height: | 2231 mm |
| Age Suitability: | 5-7 Years Old |
| Area of Application: | Outdoor |
| BIM Object Available: | No |
| BSFG RAL Colours Palette: | Galvanised, BSFG RAL 6001, BSFG RAL 7008, BSFG RAL 1013, BSFG RAL 7035, BSFG RAL 6027, BSFG RAL 2002, BSFG RAL 5015, BSFG RAL 5021, BSFG RAL 9005, BSFG RAL 3020, BSFG RAL 1023, BSFG RAL 2004, BSFG RAL 9006, BSFG RAL 1027, BSFG RAL 8017, BSFG RAL 7001, BSFG RAL 6018, BSFG RAL 6019, BSFG RAL 7039, BSFG RAL 8007, BSFG RAL 5024, BSFG RAL 9016, BSFG RAL 3005, BSFG RAL 4009, BSFG RAL 1028, BSFG RAL 5013, BSFG RAL 4005, BSFG RAL 7012, BSFG RAL 7016 |
| Basketball Backboard Length: | 800 mm |
| Basketball Hoop / Netball Ring Height: | 1800 mm, 2600 mm |
| Basketball or Netball: | Basketball |
| Below Ground Height: | 500 mm |
| Condition Upon Delivery: | Unassembled |
| Country of Origin: | United Kingdom |
| Depth: | 300 mm |
| Designer: | Bailey Street Furniture Group |
| Finishing / Treatment: | Galvanised, Powder Coated |
| Goal Depth: | 300 mm |
| Goal Height: | 700 mm |
| Goal Length: | 2000 mm |
| Goal Mouth Style: | Recess Goal |
| Height: | 1500 mm, 2231 mm |
| Key Stage: | Key Stage 1 (5 to 7 Years Old) |
| Length: | 4980 mm |
| Material: | Steel |
| Mounting Options: | Root Fixed |
| NBS Source Listed: | No |
| Overall Height: | 2731 mm |
| Play Values: | Competitive Play, Co-Operative Play, Gross Motor Skills, Stretching & Flexibility, Hand-eye Co-ordination, Communication Skills |
| Product: | Playground / Sports Equipment |
| Product Application: | Outdoor |
| Side Panel Edge: | Straight |
| Side Panel Height: | 1500 mm |
| Side Panel Length: | 1490 mm |
| Side Panels: | Yes |
| Sports Activities: | Football |
| Upper Rebound Panel: | Yes |
| Upper Rebound Panel Height: | 800 mm |
| Upper Rebound Panel Length: | 2000 mm |
| Warranty: | 1 Years |
| Weight: | 264 kg |
Login
£4,317.00
Excl. VAT£5,180.40 Incl. VAT
Installation / fixing method
This Product can be customised with a range of optional fixtures. If you have any further bespoke requirements get in touch, our sales team will be happy to help.
Designed By:
Bailey Street Furniture Group
Bailey Street Furniture Group turns streets into social stages. With bold, sustainable designs—from benches to cycle hubs—they craft spaces where communities connect, play, and thrive, blending creativity with functionality for vibrant urban life.
FAQ
The unit features a 1500mm overall height, 4980mm width, 300mm depth and a basketball ring height of 1800mm.
Yes, it is specifically designed for children aged 7 and under, supporting safe early years sport and skill development.

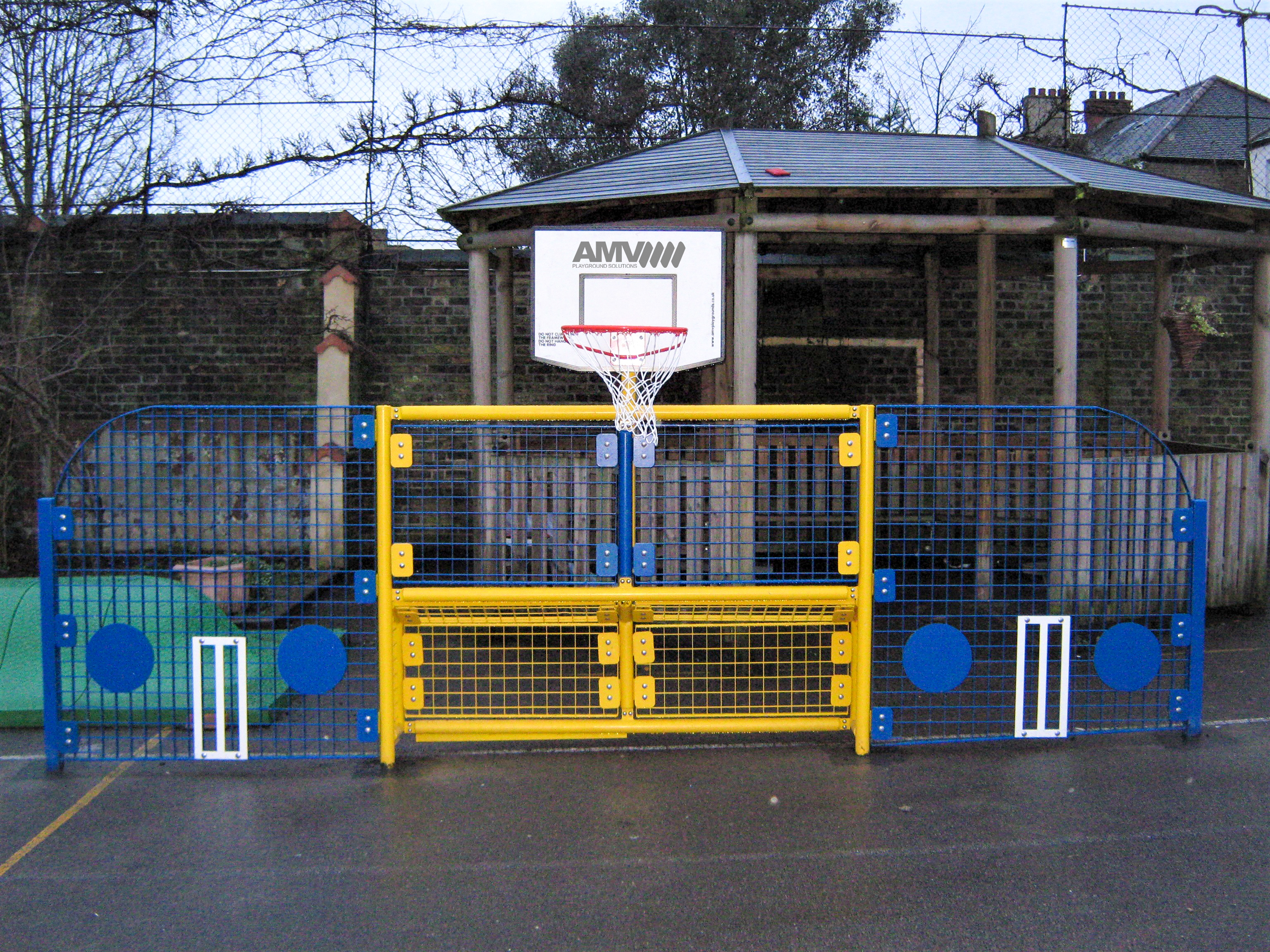

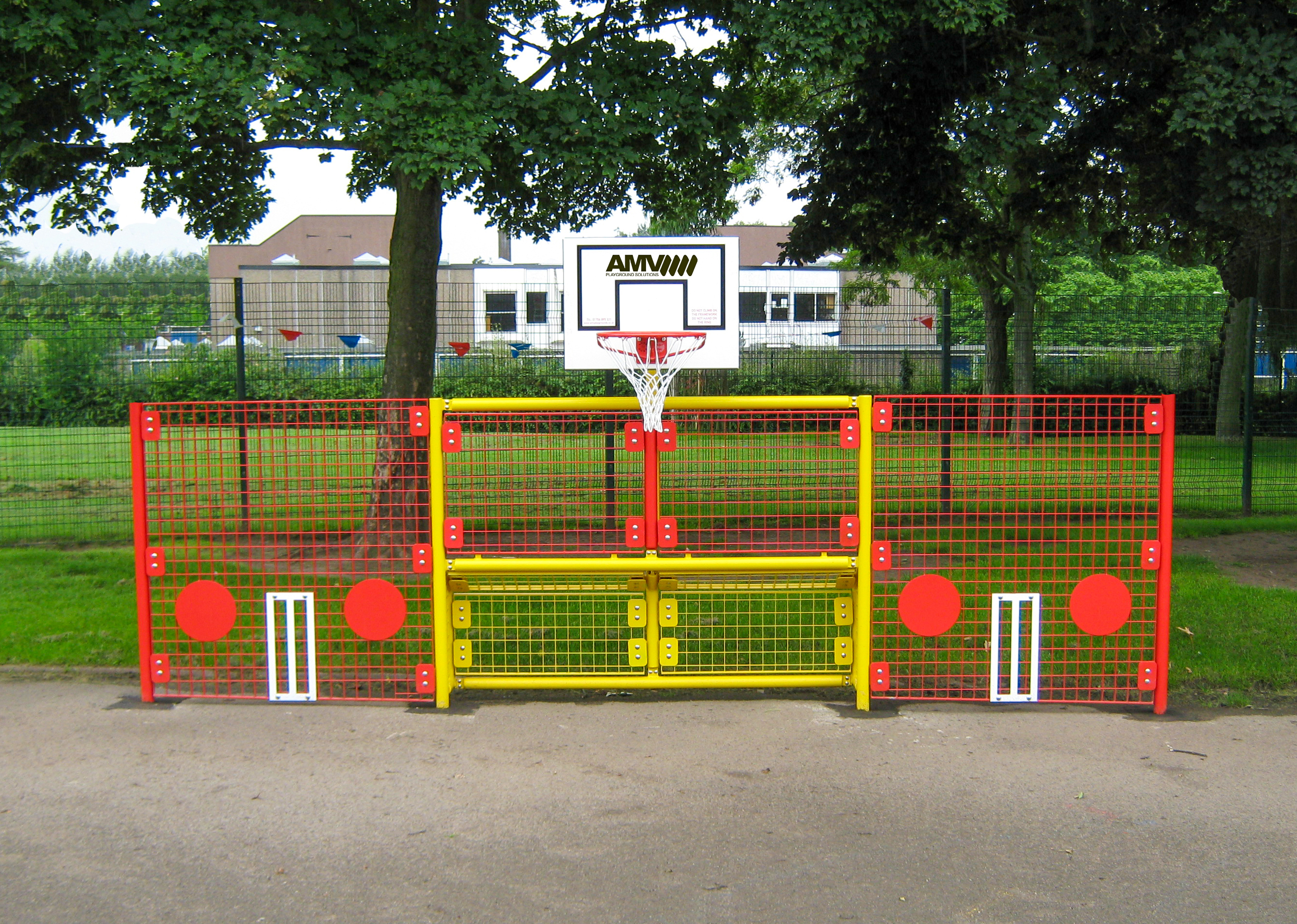

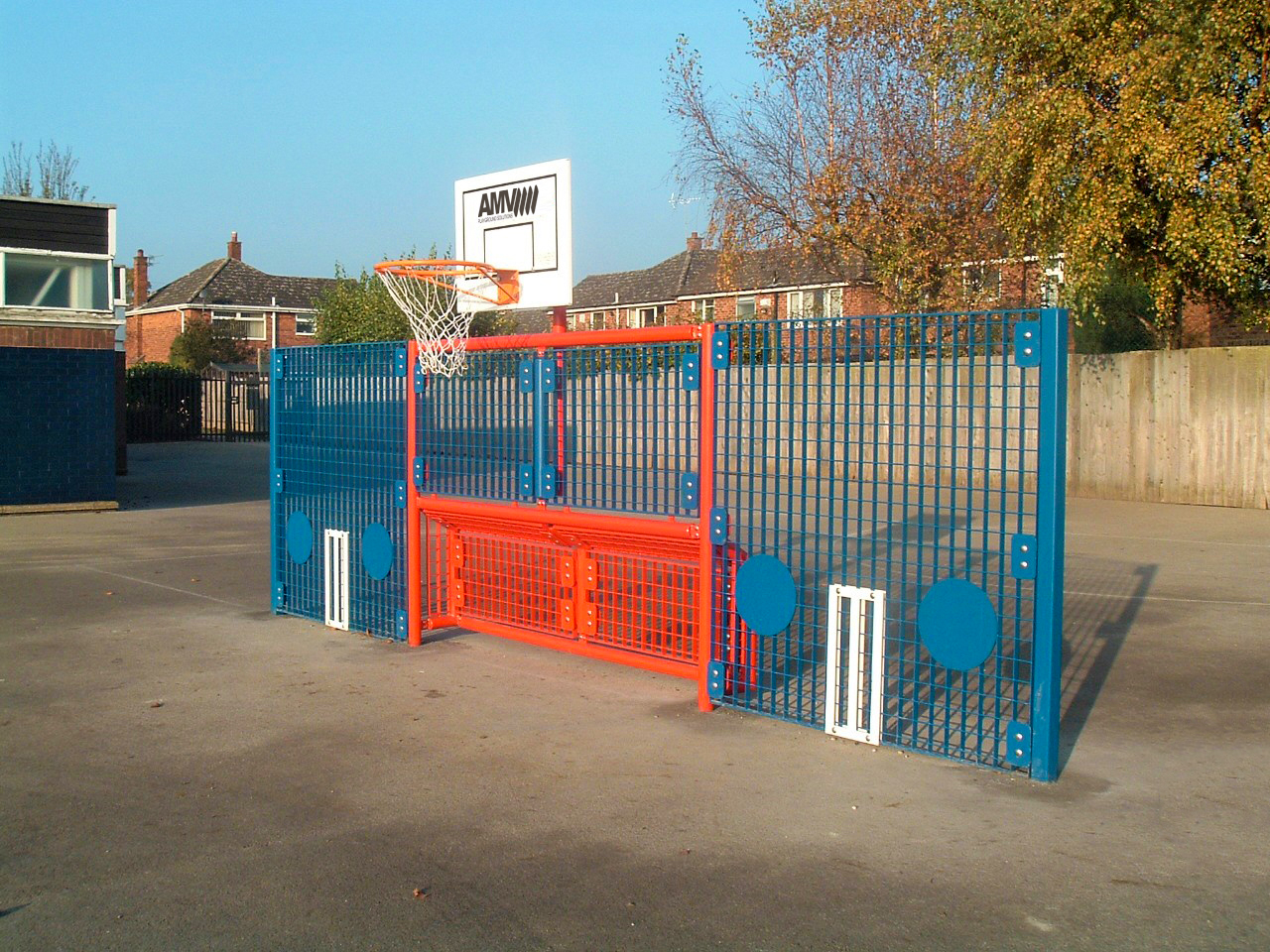

The model includes a basketball backboard and ring plus 1500mm high side panels with integrated targets and wickets for varied skill‑building activities.
It is made from mild steel, galvanised and powder coated, providing long‑term vandal resistance, weatherproof performance and low maintenance.
Yes, it is designed in line with BS EN 15312 and EN 1270, ensuring compliance for free‑access multi‑sports equipment in schools and public play spaces.
